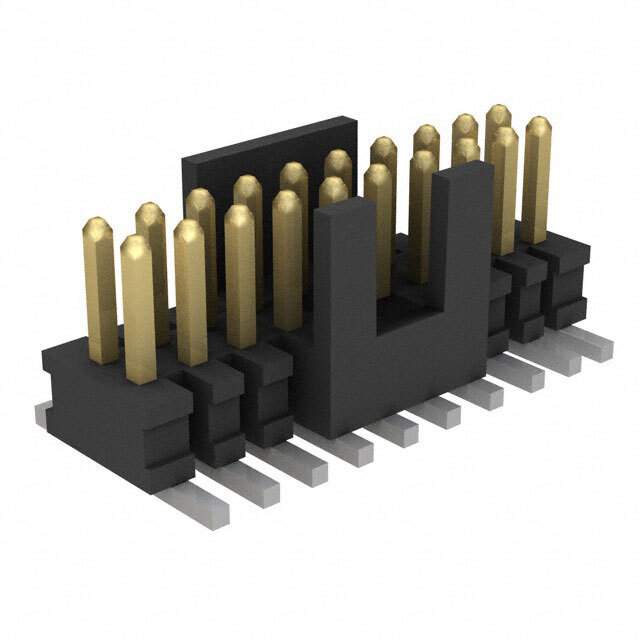

Same model may have multiple batches, images only for reference.

FTSH-110-01-F-DV-K-P-TR

Name: FTSH-110-01-F-DV-K-P-TR
Brand: Samtec Inc.
SKU: 809783
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-110-01-F-DV-K-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00μin (0.076μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Manufacturer Pack Quantity	400
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809786-FTSH-110-01-F-DV-K-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTSH-110-01-F-DV-K-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. FTSH-110-01-F-DV-K-P-TR is a reel packaging header that is ideal for various applications. Samtec Inc.

Connector Type: Header, Cuttable
Contact Type: Male Pin
Number of Positions: 20
Mounting Style: SMD
Keying: Shroud
Pick and Place: Yes
Number of Positions Loaded: All
Number of Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Pitch-Mating: 0.050 inches (1.27mm)
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 3.00μin (0.076μm)
Insulation Color: Black
Row Spacing-Mating: 0.050 inches (1.27mm)
Insulation Height: 0.099 inches (2.51mm)
Contact Shape: Square
Temperature Range Operating: -55 degrees Celsius to 125 degrees Celsius
Current Rating (Amps): 3
Manufacturer Pack Quantity: 400
MSL Level: 1 (Unlimited)
