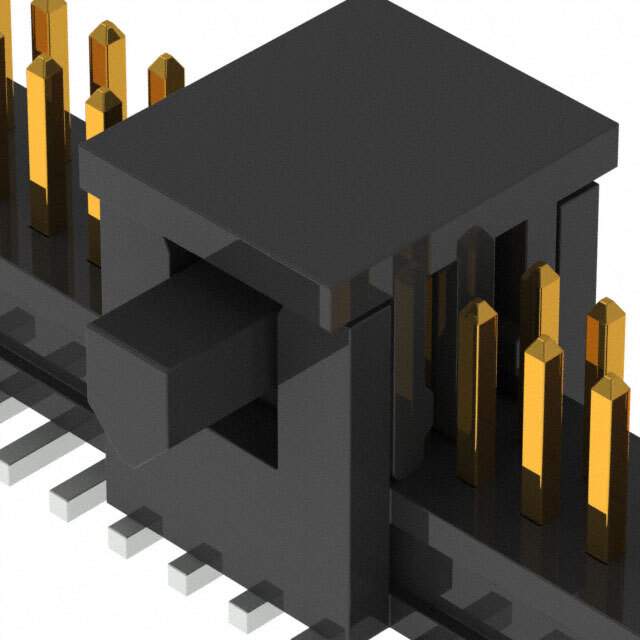

Same model may have multiple batches, images only for reference.

FTSH-125-01-L-DV-K-P-TR

Name: FTSH-125-01-L-DV-K-P-TR
Brand: Samtec Inc.
SKU: 814418
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-125-01-L-DV-K-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 50POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Manufacturer Pack Quantity	450
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	814421-FTSH-125-01-L-DV-K-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTSH-125-01-L-DV-K-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. 814421-FTSH-125-01-L-DV-K-P-TR header connector is a board-to-board or cable connector with 50 positions and 2 rows.

Contact Material: Phosphor Bronze
Mating Finish: Gold (10.0μin (0.25μm))
Pitch: 0.050" (1.27mm)
Row Spacing: 0.050" (1.27mm)
Contact Length: 0.120" (3.05mm)
Insulation Height: 0.099" (2.51mm)
Temperature Range: -55°C ~ 125°C
Fastening Type: Push-Pull
Shrouded: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Cuttable: Yes
Contact Type: Male Pin
Features: Header connector with keying shroud and pick and place
Packaging: Reel
Manufacturer Pack Quantity: 450
