Same model may have multiple batches, images only for reference.

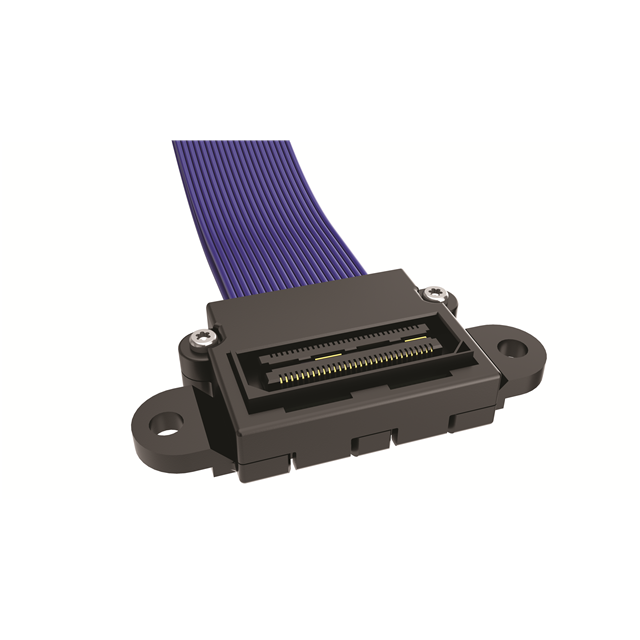

HQCD-090-12.00-TEU-SEU-1 Real Image
Same model may have multiple batches, images only for reference.

HQCD-090-12.00-TEU-SEU-1

Part No HQCD-090-12.00-TEU-SEU-1
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description CBL ASSM M-F 180POS 12" HDR / 180 Position Cable Assembly Rectangular Card Edge to Card Edge 1.00' (304.80mm)
Datasheet
HQCD-090-12.00-TEU-SEU-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Q Strip® HQCD
Package Bulk
Connector Type Card Edge to Card Edge
Number of Positions 180
Number of Rows 2
Pitch - Connector 0.020" (0.50mm)
Pitch - Cable 0.010" (0.25mm)
Length 1.00' (304.80mm)
Color Blue, Ribbon
Shielding Shielded
Cable Termination IDC
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Base Product Number HQCD-090
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8544.20.0000
Other Names 612-HQCD-090-12.00-TEU-SEU-1
Standard Package 10
Win Source Part Number 1180176-HQCD-090-12.00-TEU-SEU-1
Ultra Librarian 3D Model Ultra Librarian HQCD-090-12.00-TEU-SEU-1 CAD Model

Description

The Q Strip® HQCD cable assembly is a two-row card edge to card edge connector with a length of 1.00' (304.80mm) and a pitch of 0.020" (0.50mm) for connectors and 0.010" (0.25mm) for cables.

  • Manufacturer: Samtec Inc.
  • Cable Assembly Type: Q Strip® HQCD
  • Connector Type: Card Edge to Card Edge
  • Rows: Two
  • Length: 1.00' (304.80mm)
  • Pitch (Connectors): 0.020" (0.50mm)
  • Pitch (Cables): 0.010" (0.25mm)
  • Shielding: Yes
  • Color: Ribbon Blue
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Termination: IDC
  • Package: Bulk
  • Standard Package: 10
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8544.20.0000
  • Base Product Number: HQCD-090
