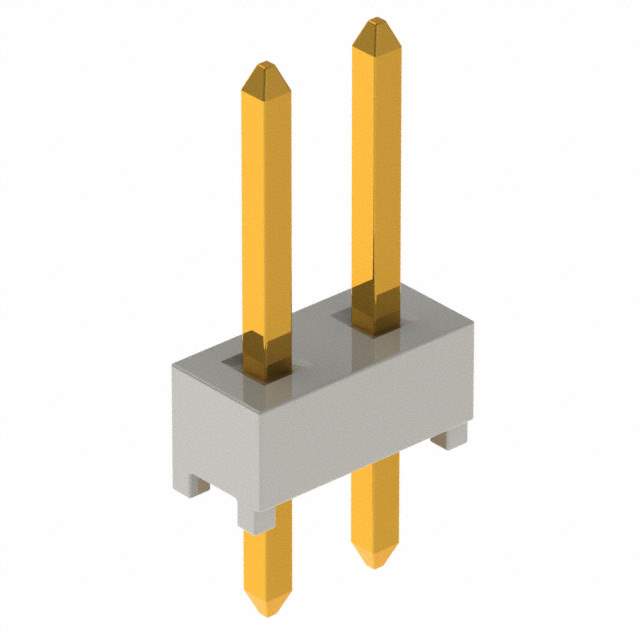

HTSW-101-07-G-S

Name: HTSW-101-07-G-S
Brand: Samtec Inc.
SKU: 994908
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTSW-101-07-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 1POS / Connector Header Through Hole 1 position
Datasheet	HTSW-101-07-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	HTSW
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Number of Positions	1
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	HTSW-101
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	HTSW-101-07-G-S-ND,SAM15191
Standard Package	1
Win Source Part Number	994908-HTSW-101-07-G-S
Ultra Librarian 3D Model	Ultra Librarian HTSW-101-07-G-S CAD Model

Alternative Products

Description

The Samtec Inc. 994908-HTSW-101-07-G-S is a 1-position header connector that is commonly used in board to board or cable applications.

Manufacturer: Samtec Inc.
Product: 994908-HTSW-101-07-G-S
Position: 1
Application: Board to board or cable
Contact Type: Forked
Termination: Solder
Contact Finish: Gold
Mounting: Through Hole
Temperature Range: -55°C to 125°C
REACH: Unaffected
