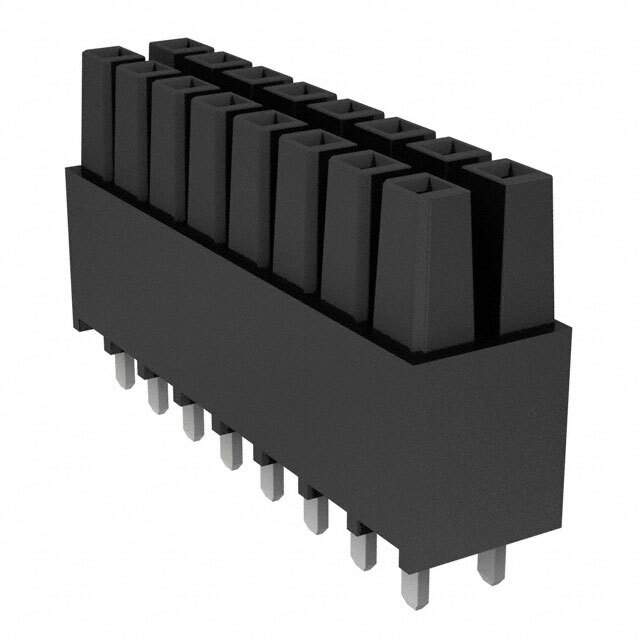

IPS1-108-01-S-D

Name: IPS1-108-01-S-D
Brand: Samtec Inc.
SKU: 1086150
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IPS1-108-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 16POS 0.1 GOLD PCB / 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	IPS1-108-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Mini Mate® IPS1
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Voltage Rating	775VAC, 1095VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	IPS1-108
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	IPS1-108-01-S-D-ND,SAM12673
Standard Package	1
Win Source Part Number	1086150-IPS1-108-01-S-D
Ultra Librarian 3D Model	Ultra Librarian IPS1-108-01-S-D CAD Model

Alternative Products

Description

The Mini Mate™ IPS1 series connector is a receptacle type connector with a 2-row design and 16 positions. It is loaded with all positions and has a pitch-mating of 0.100" (2.54mm).

Contact Finish: Gold with a finish thickness of 30.0μin (0.76μm) for mating and tin for the post
Insulation Material: Liquid crystal polymer (LCP) with a black color
Mounting Type: Through-hole
Row Spacing-Mating: 0.100" (2.54mm)
Insulation Height: 0.335" (8.51mm)
Contact Shape: Square
Temperature Range: -55°C to 125°C
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Manufacturer: Samtec Inc.
