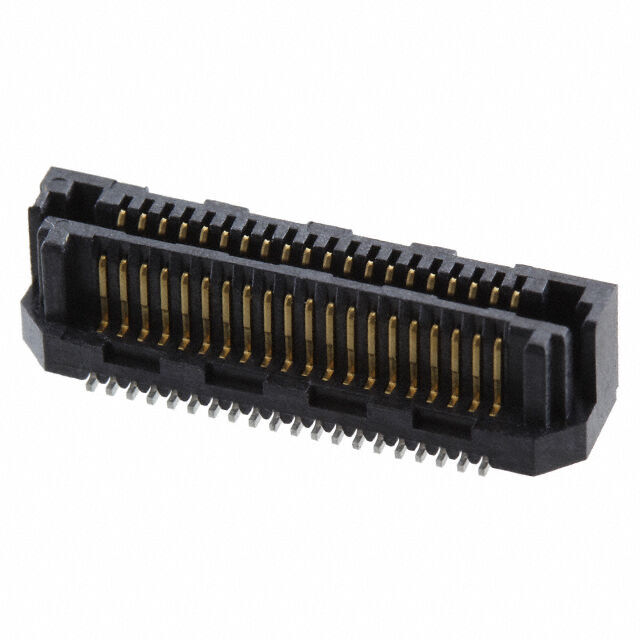

LSS-120-01-F-DV-A Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LSS-120-01-F-DV-A

Part No LSS-120-01-F-DV-A
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN SELF-MATE 40POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsArrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Samtec Inc.
Series Razor Beam? LSS
Packaging Tube
Part Status Active
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 3.00μin (0.076μm)
Mated Stacking Heights 6mm, 7mm, 9mm
Height Above Board 0.169" (4.30mm)
Base Product Number LSS-120
Ultra Librarian 3D Model Ultra Librarian LSS-120-01-F-DV-A CAD Model
