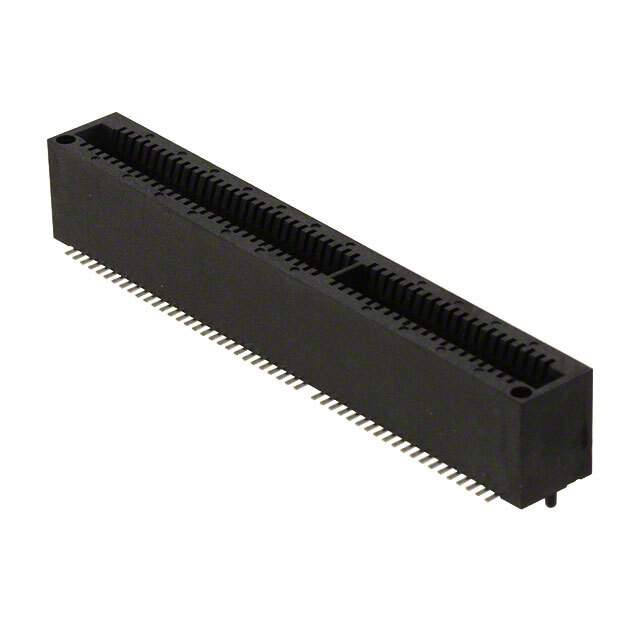

MEC1-150-02-S-D-A Real Image
Same model may have multiple batches, images only for reference.

MEC1-150-02-S-D-A

Part No MEC1-150-02-S-D-A
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 100P 0.039 / 100 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black
Datasheet
MEC1-150-02-S-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series MEC1
Package Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 100
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Loop Bellows
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC1-150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM8120,MEC115002SDA
Standard Package 10
Win Source Part Number 1078509-MEC1-150-02-S-D-A
Ultra Librarian 3D Model Ultra Librarian MEC1-150-02-S-D-A CAD Model

Description

The Samtec MEC1 is a 100-position, dual edge card edge connector that is ideal for use in edgeboard connectors applications.

  • Number of Positions: 100
  • Pitch: 0.039 inches
  • Connection Style: Board to Board or Cable
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0 microinches
  • Voltage Rating: 465VAC and 655VDC
  • RoHS Compliant: Yes
  • Temperature Range: -55 to 125 degrees Celsius
  • Packaging: Tube
  • Manufacturer: Samtec Inc.
