Same model may have multiple batches, images only for reference.

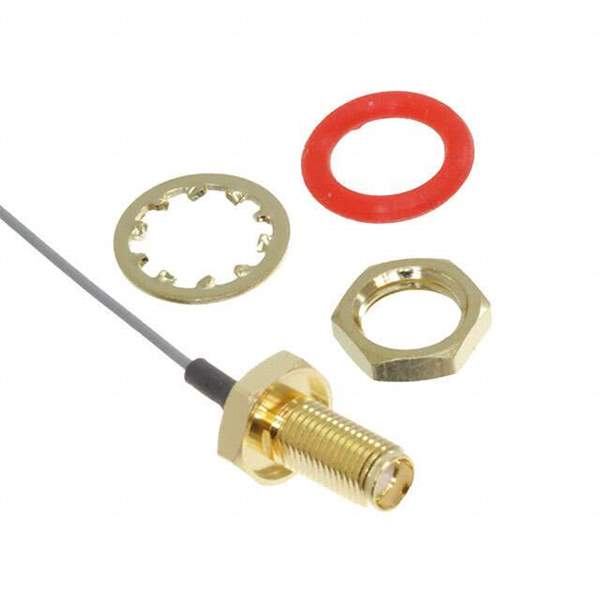

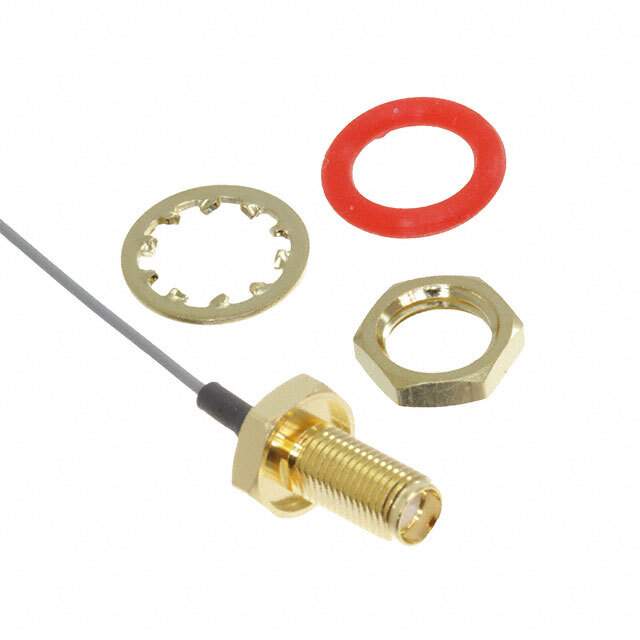

MH113-MH1RP-01SB1-0100 Real Image
Same model may have multiple batches, images only for reference.

MH113-MH1RP-01SB1-0100

Part No MH113-MH1RP-01SB1-0100
Manufacturer Samtec Inc.
Catalog Coaxial Cables (RF)
Description CBL ASSEM RF 1.13MM / Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to SMA 1.13mm OD Coaxial Cable 3.937" (100.00mm)
Datasheet
MH113-MH1RP-01SB1-0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Samtec Inc.
Series MH113
Package Bag
Style U.FL (UMCC), IPEX MHF1 to SMA
1st Connector SMA Jack
1st Contact Gender Female
1st Connector Mounting Type Panel Mount
1st Connector Mounting Feature Bulkhead - Front Side Nut
2nd Connector U.FL (UMCC), IPEX MHF1 Plug, Right Angle
2nd Contact Gender Female
2nd Connector Mounting Type Free Hanging (In-Line)
Length 3.937" (100.00mm)
Cable Type 1.13mm OD Coaxial Cable
Cable Impedance 50 Ohms
Overall Impedance 50 Ohms
Frequency - Max 6 GHz
Color Gray
Features Shielded
Temperature Range - Operating -40°C ~ 90°C
Base Product Number MH113-MH1RP
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.20.0000
Other Names SAM16009
Standard Package 1
Win Source Part Number 1127456-MH113-MH1RP-01SB1-0100
Ultra Librarian 3D Model Ultra Librarian MH113-MH1RP-01SB1-0100 CAD Model

Description

The Samtec Inc. MH113-MH1RP-01SB1-0100 is a cable assembly that is designed for use in coaxial cables (RF).

  • Length: 3.937" (100.00mm)
  • Cable Type: 1.13mm OD Coaxial Cable
  • Frequency Max: 6 GHz
  • Standard Package: 1
  • Style: U.FL (UMCC), IPEX MHF1 to SMA
  • Shielded: Yes
  • Temperature Range: -40°C ~ 90°C
  • Alternative Parts: MH113MH1RP01SB10100
  • REACH Status: Affected
  • ECCN: EAR99
  • HTSUS: 8544.20.0000
