Same model may have multiple batches, images only for reference.

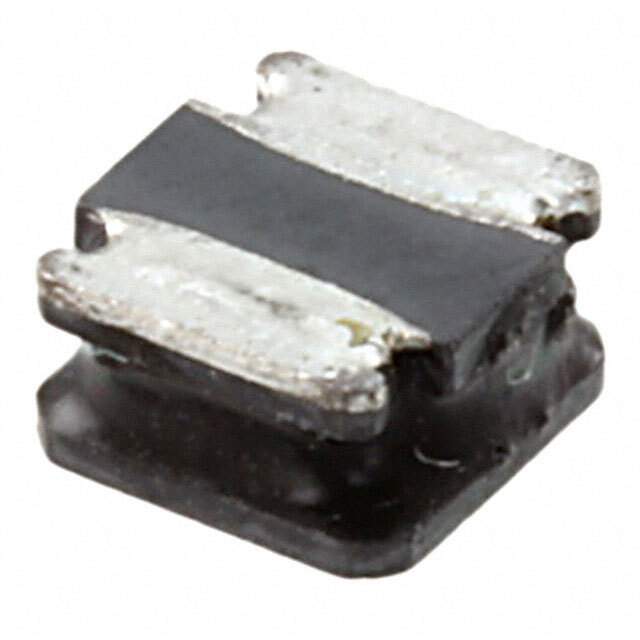

SRN4026-470M Real Image
Same model may have multiple batches, images only for reference.

SRN4026-470M

Part No SRN4026-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4026-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4026
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 400 mA
Current - Saturation (Isat) 400mA
Shielding Semi-Shielded
DC Resistance (DCR) 594mOhm Max
Q @ Freq 19 @ 2.52MHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Base Product Number SRN4026
Other Names SRN4026-470MTR,SRN4026-470MCT,SRN4026-470MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274319-SRN4026-470M
Ultra Librarian 3D Model Ultra Librarian SRN4026-470M CAD Model

Description

The Bourns Inc. SRN4026-470MTR is a drum core, wirewound fixed inductor with a semi-shielded shielding.

  • Shielding: Semi-Shielded
  • Inductance: 47 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 594mOhm Max
  • Mounting Type: Surface Mount
  • Current Rating: 400 mA
