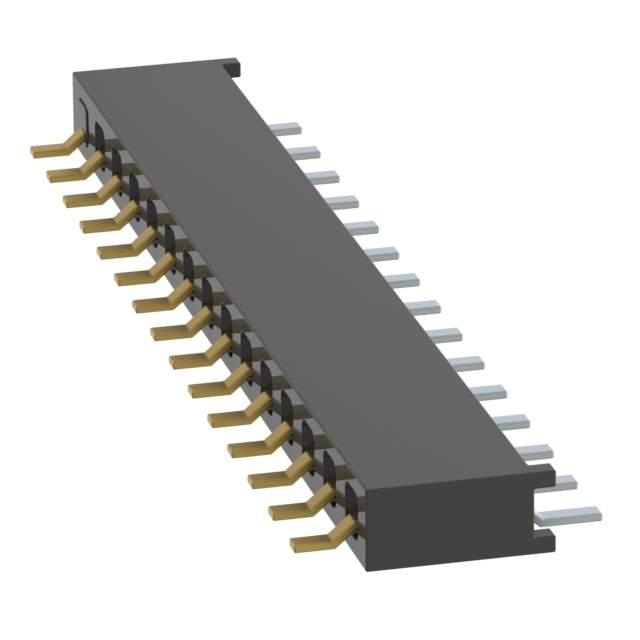

Same model may have multiple batches, images only for reference.

MMS-115-02-L-SH-15-TR

Name: MMS-115-02-L-SH-15-TR
Brand: Samtec Inc.
SKU: 1080313
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMS-115-02-L-SH-15-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 15P 0.079 GOLD SMD R/A / 15 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	MMS
Package	Tape & Reel (TR)
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	15
Number of Positions Loaded	14
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.085" (2.15mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	3.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	MMS-115
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	125
Win Source Part Number	1080313-MMS-115-02-L-SH-15-TR
Ultra Librarian 3D Model	Ultra Librarian MMS-115-02-L-SH-15-TR CAD Model

Alternative Products

Description

The MMS-115-02-L-SH-15-TR is a rectangular connector that comes in a tape and reel package.

Series: MMS
Positions: 15
Connector Type: Receptacle
Contact Type: Female socket
Positions Loaded: 14
Row: One
Termination: Solder
Fastening Type: Push-pull
Contact Material: Phosphor bronze
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Insulation Material: Liquid crystal polymer (LCP)
Insulation Height: 0.085" (2.15mm)
Style: Board to board or cable
Pitch: 0.079" (2.00mm)
Manufacturer: Samtec Inc.
Alternate Cross-Reference Parts: SQT-115-01-F-S, ESQT-115-02-L-S-615, and SMM-115-02-S-S-P
