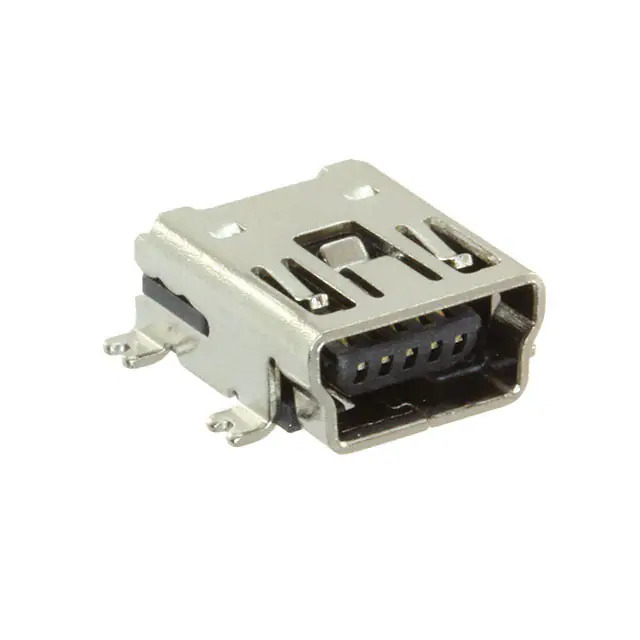

MUSB-05-F-B-SM-A

Name: MUSB-05-F-B-SM-A
Brand: Samtec Inc.
SKU: 1364378
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MUSB-05-F-B-SM-A
Manufacturer	Samtec Inc.
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet	MUSB-05-F-B-SM-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Samtec Inc.
Series	MUSB
Package	Tray
Product Status	Active
Connector Type	USB - mini B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Surface Mount, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Guide, Solder Retention
Ingress Protection	-
Temperature Range - Operating	-50°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	-
Voltage - Rated	30V
Mating Cycles	1500
Shielding	Unshielded
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	MUSB-05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364378-MUSB-05-F-B-SM-A
Ultra Librarian 3D Model	Ultra Librarian MUSB-05-F-B-SM-A CAD Model

Alternative Products

Description

The MUSB-05-F-B-SM-A is a USB connector assembly from the Samtec Inc. MUSB series.

Series: MUSB
Mounting Type: Surface Mount, Right Angle
Connector Type: USB Mini B
Voltage Rating: 30V
Temperature Range: -50°C to 85°C
Features: Board Guide, Solder Retention
Contact Material: Gold-Plated
Insulation Material: Black
Product Status: Active
