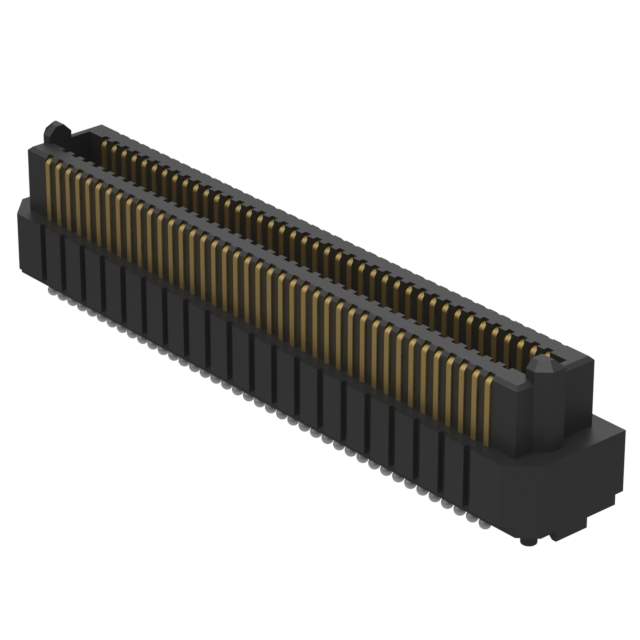

Same model may have multiple batches, images only for reference.

ADM6-40-03.5-L-4-2-A-TR

Name: ADM6-40-03.5-L-4-2-A-TR
Brand: Samtec Inc.
SKU: 1341033
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ADM6-40-03.5-L-4-2-A-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN 0.635MM HDR 160POS SMD / 160 Position Connector High Density Array, Male Surface Mount Gold
Datasheet	ADM6-40-03.5-L-4-2-A-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	AcceleRate® ADM6
Package	Tape & Reel (TR) Cut Tape (CT)
Connector Type	High Density Array, Male
Number of Positions	160
Pitch	0.025" (0.64mm)
Number of Rows	4
Mounting Type	Surface Mount
Features	Board Guide, Latches
Contact Finish	Gold
Contact Finish Thickness	100.0µin (2.54µm)
Mated Stacking Heights	7mm, 11mm
Height Above Board	0.213" (5.40mm)
Base Product Number	ADM6-40
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341033-ADM6-40-03.5-L-4-2-A-TR
Ultra Librarian 3D Model	Ultra Librarian ADM6-40-03.5-L-4-2-A-TR CAD Model

Alternative Products

Description

The Samtec Inc. ADM6-40-03.5-L-4-2-A-TR is a high-density array, male connector that is part of the AcceleRate® ADM6 series.

Positions: 160
Pitch: 0.025" (0.64mm)
Features: Board guide and latches for secure connections
Package: Tape and reel or cut tape
Standard Package: 500
Applications: Mezzanine board-to-board applications, such as in servers, networking equipment, and telecommunications devices.
