Same model may have multiple batches, images only for reference.

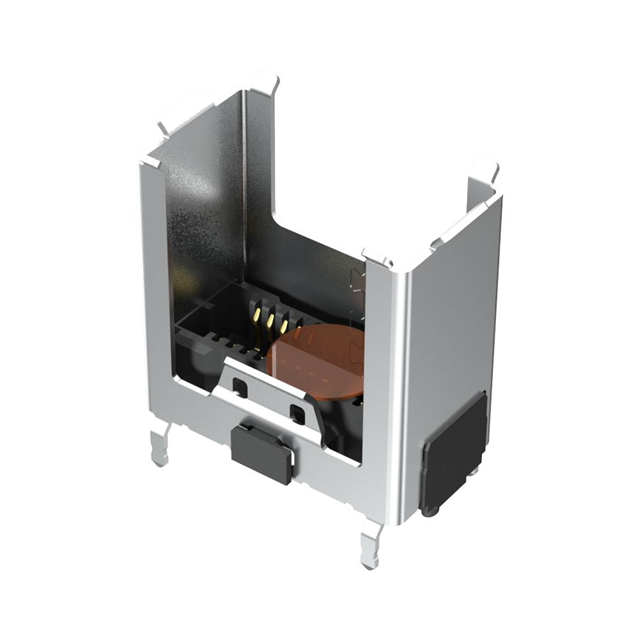

ARF6-08-S-D-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

ARF6-08-S-D-A-K-TR

Part No ARF6-08-S-D-A-K-TR
Manufacturer Samtec Inc.
Catalog Pluggable Connectors
Description CONN SKT 8PAIR SMD GOLD VERT / 16 Position High Density Array Receptacle Connector Solder Surface Mount
Datasheet
ARF6-08-S-D-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Samtec Inc.
Series AcceleRate® ARF6
Package Tape & Reel (TR) Cut Tape (CT)
Connector Style Receptacle
Connector Type High Density Array
Number of Positions 16
Mounting Type Surface Mount
Termination Solder
Features Board Guide, Pick and Place Cap, Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number ARF6-08
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338077-ARF6-08-S-D-A-K-TR
Ultra Librarian 3D Model Ultra Librarian ARF6-08-S-D-A-K-TR CAD Model

Description

The AcceleRate ARF6 series high-density array pluggable connector assembly is designed for use in a wide range of electronic devices.

  • Positions: 16
  • Termination: Solder
  • Features: Board Guide, Pick and Place Cap, Shielding
  • Contact Plating: Gold
  • Contact Plating Thickness: 30.0µin (0.76µm)
  • Connector Style: Receptacle
  • Package: Tape and Reel (TR) Cut Tape (CT)
  • Mounting Type: Surface Mount
