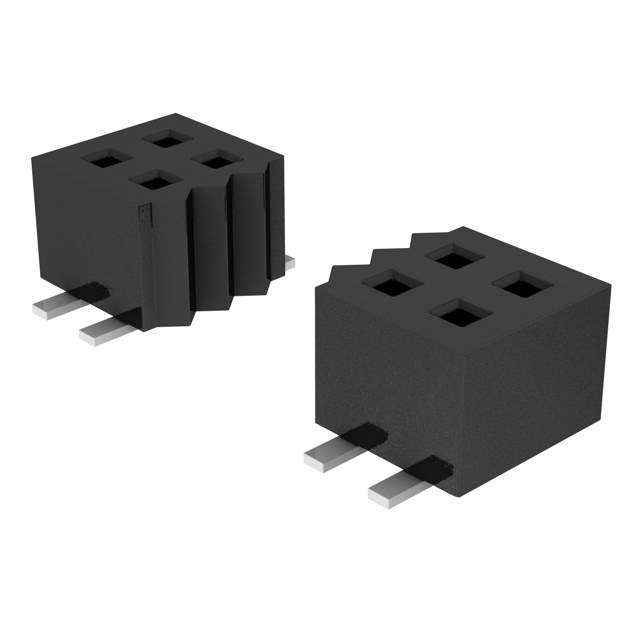

CLP-104-02-F-D Real Image
Same model may have multiple batches, images only for reference.

CLP-104-02-F-D

Part No CLP-104-02-F-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 8POS 0.05 GOLD SMD / 8 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
CLP-104-02-F-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLP
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Insulation Color Black
Insulation Height 0.090" (2.29mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.3A per Contact
Voltage Rating 240VAC, 330VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLP-104
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1341317-CLP-104-02-F-D
Ultra Librarian 3D Model Ultra Librarian CLP-104-02-F-D CAD Model

Description

The CLP series receptacle connector is a rectangular connector with a double row of eight female socket contacts.

  • Termination: solder
  • Fastening: push-pull
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Voltage (AC): 240VAC
  • Voltage (DC): 330VDC
  • Temperature Range: -55°C to 125°C
  • Applications: board to board
  • Pitch: 0.050” (1.27mm)
  • Contact Finish (Mating): gold with a thickness of 3.90µin (0.099µm)
  • Contact Finish (Post): tin
  • Packaging: bulk
  • Standard Package: 1
