Same model may have multiple batches, images only for reference.

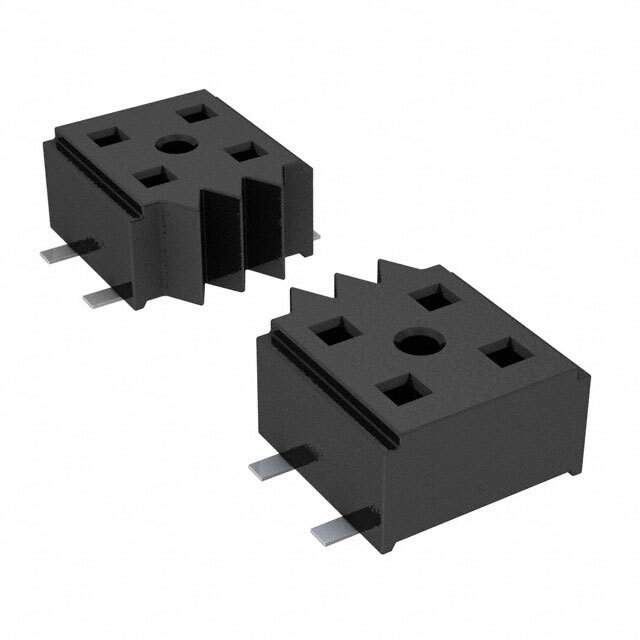

CLT-110-02-F-D-A Real Image
Same model may have multiple batches, images only for reference.

CLT-110-02-F-D-A

Part No CLT-110-02-F-D-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.079 GOLD SMD / 20 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
CLT-110-02-F-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLT
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide
Current Rating (Amps) 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLT-110
Standard Package 28
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1340801-CLT-110-02-F-D-A
Ultra Librarian 3D Model Ultra Librarian CLT-110-02-F-D-A CAD Model

Description

The Samtec Inc. CLT-110-02-F-D-A is a 20-position female socket connector from the CLT series.

  • Series: CLT
  • Application: Board-to-Board
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Pitch: 0.079" (2.00mm)
  • Positions Loaded: All
  • Current Rating: 4.1A per contact
  • Temperature Range: -55°C to 125°C
  • REACH: Affected
  • HTSUS: 8536.69.4040
  • Package: Tube
  • Standard Package Size: 28
