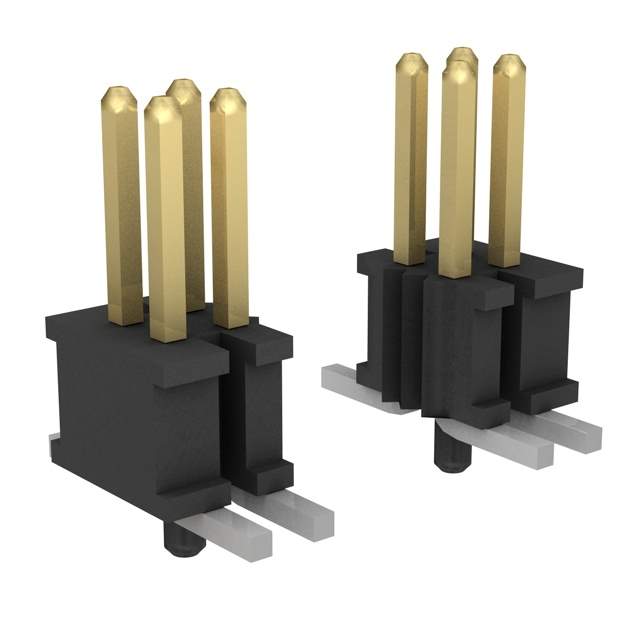

Same model may have multiple batches, images only for reference.

FTSH-110-01-L-DV-A-P-TR

Name: FTSH-110-01-L-DV-A-P-TR
Brand: Samtec Inc.
SKU: 1332384
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-110-01-L-DV-A-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet	FTSH-110-01-L-DV-A-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-110
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM13958DKR,SAM13958CT,SAM13958TR,FTSH-110-01-L-DV-A-P-TR-ND,FTSH-110-01-L-DV-A-P-FR
Standard Package	400
Win Source Part Number	1332384-FTSH-110-01-L-DV-A-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTSH-110-01-L-DV-A-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. FTSH-110-01-L-DV-A-P-TR connector is a board-to-board or cable, male header connector.

Positions: 20
Positions Loaded: All
Pitch: 0.050 inches (1.27mm)
Contact Material: Phosphor bronze
Current Rating: 3.4A per contact
Operating Temperature Range: -55°C to 125°C
Mounting: Surface mount
Design: Shrouded, unshrouded
Packaging: Reel
Standard Package: 400 units
RoHS3 Compliant: Yes
REACH Affected: Yes
