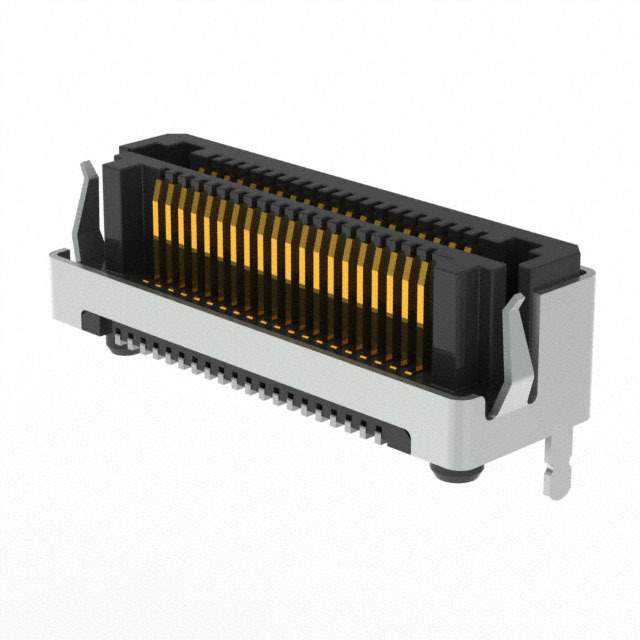

LSHM-120-03.0-L-DV-A-S-TR Real Image
Same model may have multiple batches, images only for reference.

LSHM-120-03.0-L-DV-A-S-TR

Part No LSHM-120-03.0-L-DV-A-S-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SELF-MATE 40POS SMD GOLD / 40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Datasheet
LSHM-120-03.0-L-DV-A-S-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ LSHM
Package Tape & Reel
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Shielded
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 5.5mm, 6mm, 7mm, 9mm
Height Above Board 0.175" (4.45mm)
Base Product Number LSHM-120
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1342319-LSHM-120-03.0-L-DV-A-S-TR
Ultra Librarian 3D Model Ultra Librarian LSHM-120-03.0-L-DV-A-S-TR CAD Model

Description

The Razor Beam™ LSHM series by Samtec Inc. presents the 1342319-LSHM-120-03.0-L-DV-A-S-TR connector, a mezzanine (board to board) connector with 40 positions. Bold text is added to Samtec Inc..

  • Series: Razor Beam™ LSHM
  • Connector Type: Mezzanine (Board to Board)
  • Number of Positions: 40
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Mating Type: Self-Mating, Non-Gendered, Hermaphroditic
  • Shielded: Yes
  • Height Above Board: 0.175" (4.45mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Standard Package Quantity: 700
