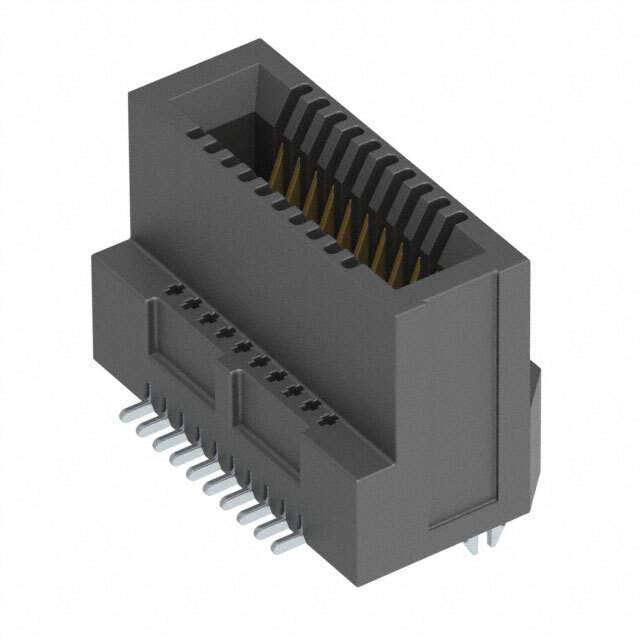

MEC8-110-02-LM-DV-LC-K-TR Real Image
Same model may have multiple batches, images only for reference.

MEC8-110-02-LM-DV-LC-K-TR

Part No MEC8-110-02-LM-DV-LC-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.031 / 20 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Samtec Inc.
Packaging Reel - TR
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 20
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting Surface Mount
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Hairpin Bellows
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC8-110
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 200
Win Source Part Number 1333995-MEC8-110-02-LM-DV-LC-K-TR
Ultra Librarian 3D Model Ultra Librarian MEC8-110-02-LM-DV-LC-K-TR CAD Model

Description

The Samtec Inc. MEC8-110-02-LM-DV-LC-K-TR is a 20-position card edge connector with a pitch of 0.031" (0.80mm) and a dual row of hairpin bellows contacts.

  • Color: Black
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Standard Package: 200
  • Mounting: Surface Mount
  • Operating Temperature: -55°C to 125°C
