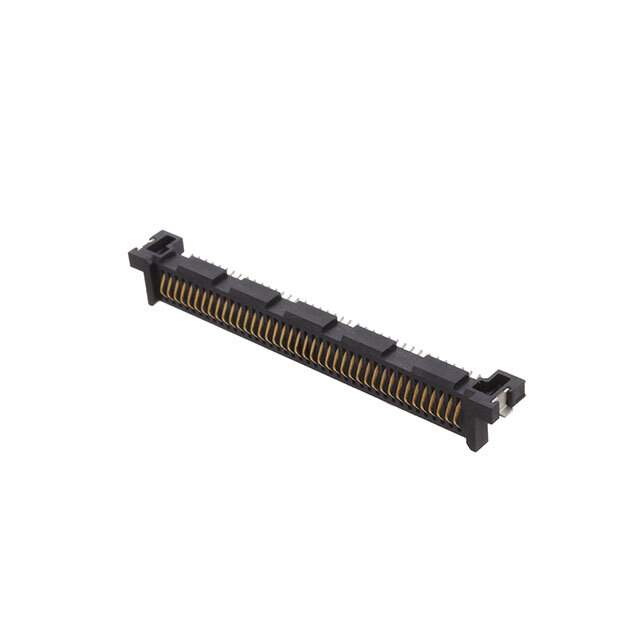

SAL1-140-01-S-S-A-TR Real Image
Same model may have multiple batches, images only for reference.

SAL1-140-01-S-S-A-TR

Part No SAL1-140-01-S-S-A-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SAL1-140-01-S-S-A-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series SataLink™ SAL1
Package Tape & Reel (TR),Cut Tape (CT)
Gender Female
Number of Positions/Bay/Row 40
Number of Positions 40
Card Thickness 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows 1
Pitch 0.039" (1.00mm)
Read Out Single
Features Board Guide, Solder Retention
Mounting SMD (SMT)
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number SAL1-140
Other Names SAM14288DKR,SAM14288CT,SAL1-140-01-S-S-A-TR,SAM14288DKRINACTIVE,SAM14288DKR,SAL1-140-01-S-S-A-FR,SAM14288TR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294245-SAL1-140-01-S-S-A-TR
Ultra Librarian 3D Model Ultra Librarian SAL1-140-01-S-S-A-TR CAD Model

Description

The Samtec Inc. SAL1-140-01-S-S-A-TR is a card edge connector used for edgeboard connectors. It is a member of the SataLink™ SAL1 series and has a Win Source Part Number of 1294245.

  • Positions: 40
  • Pitch: 0.039 inches
  • Connector Gender: Female
  • Contact Finish: Gold
