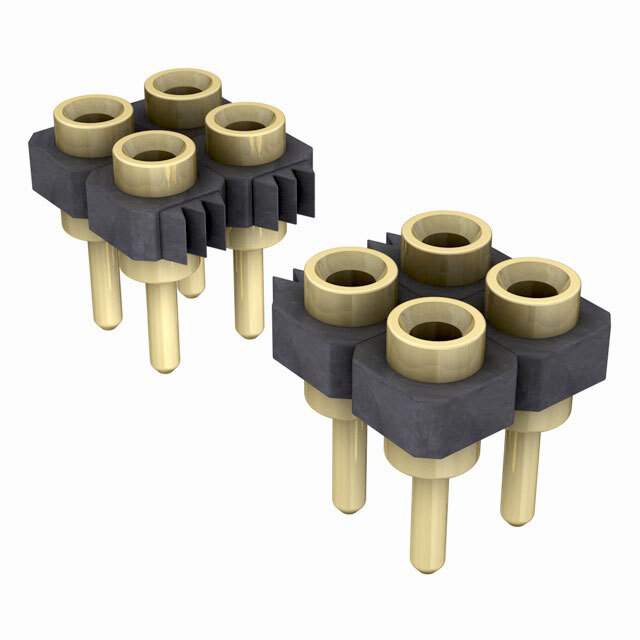

SDL-119-G-10 Real Image
Same model may have multiple batches, images only for reference.

SDL-119-G-10

Part No SDL-119-G-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-119-G-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 38
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.122" (3.10mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-119
Other Names SAM1133-19
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292921-SDL-119-G-10
Ultra Librarian 3D Model Ultra Librarian SDL-119-G-10 CAD Model

Description

The SDL-119-G-10 is a female socket connector that belongs to the category of rectangular connectors.

  • Series: SDL
  • Positions: 38
  • Mounting: Through Hole
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish: Gold
  • Thickness: 10.0 micrometers (0.25 micrometers)
  • Operating Temperatures: -55 degrees Celsius and 125 degrees Celsius
