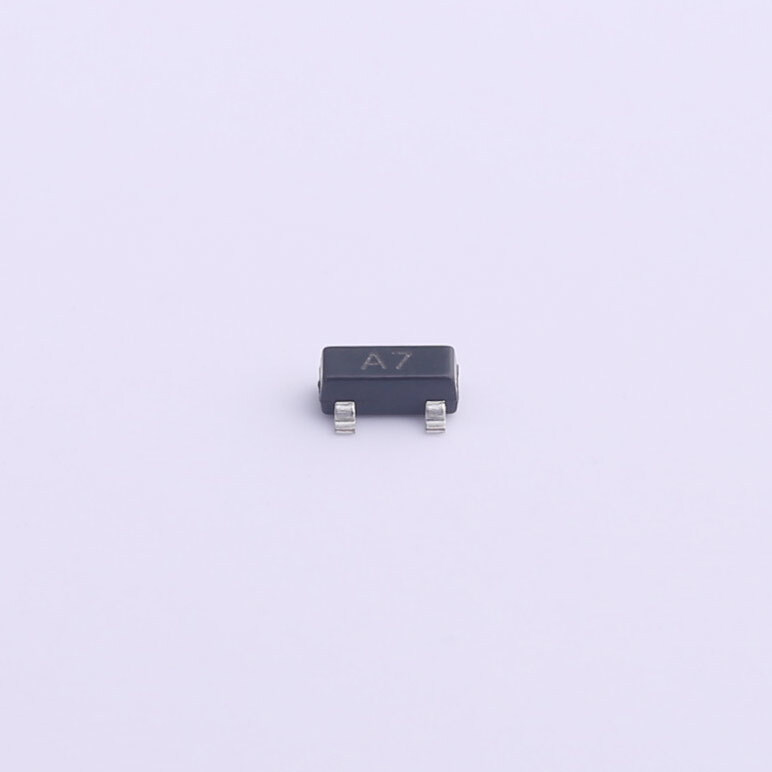

BAV99

Name: BAV99
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329864
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAV99
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	Diodes, Rectifiers - Single
Description	75V 1 pair in series 1.25V 4ns 215mA SOT-23
Datasheet	BAV99 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329864-BAV99
Package	Tape & Reel (TR)
Product Status	Active
Diode Configuration	1 Pair Series Connection
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	70V
Current - Average Rectified (Io) (per Diode)	215mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	6ns
Current - Reverse Leakage @ Vr	2.5µA @ 70V
Operating Temperature - Junction	-55°C ~ 150°C
Grade	-
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
Package	Tape & Reel (TR);Cut Tape (CT)
Current - Average Rectified (Io) (per Diode)	200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	2.5 µA @ 100 V
Operating Temperature - Junction	150°C
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io) (per Diode)	150mA
Current - Reverse Leakage @ Vr	2.5µA @ 75V
Operating Temperature - Junction	-65°C ~ 150°C
Supplier Device Package	SOT-23-3
Product Status	Obsolete
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	200mA (DC)
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	100nA @ 80V
Operating Temperature - Junction	150°C (Max)
Package	Cut Tape (CT)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	1µA @ 75V
Supplier Device Package	SOT-23-3 (TO-236)
Ultra Librarian 3D Model	Ultra Librarian BAV99 CAD Model
