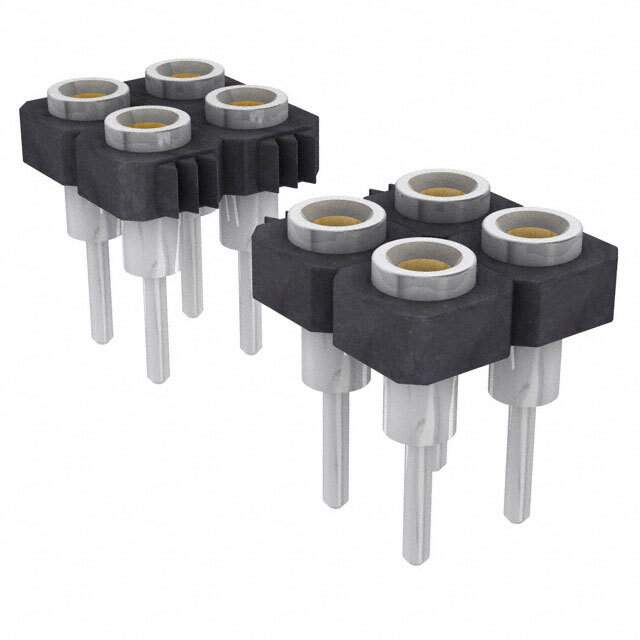

SDL-133-T-11 Real Image
Same model may have multiple batches, images only for reference.

SDL-133-T-11

Part No SDL-133-T-11
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-133-T-11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 66
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.132" (3.35mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-133
Other Names SAM1137-33
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292984-SDL-133-T-11
Ultra Librarian 3D Model Ultra Librarian SDL-133-T-11 CAD Model

Description

The SDL series connector from Samtec Inc. is a rectangular connector that is suitable for board-to-board applications.

  • Connector Type: Receptacle
  • Contact Type: Female socket
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Push-pull
  • Contact Material: Beryllium copper
  • Insulation Material: Liquid crystal polymer (LCP) with a black color
  • Contact Finish (Mating): Gold with a finish thickness of 30.0µin (0.76µm)
  • Contact Shape: Circular
  • Contact Length (Post): 0.108 inches (2.75mm)
  • Insulation Height: 0.132 inches (3.35mm)
  • Row Spacing (Mating): 0.100 inches (2.54mm)
  • Operating Temperature: -55°C to 125°C
  • Standard Package: 1
