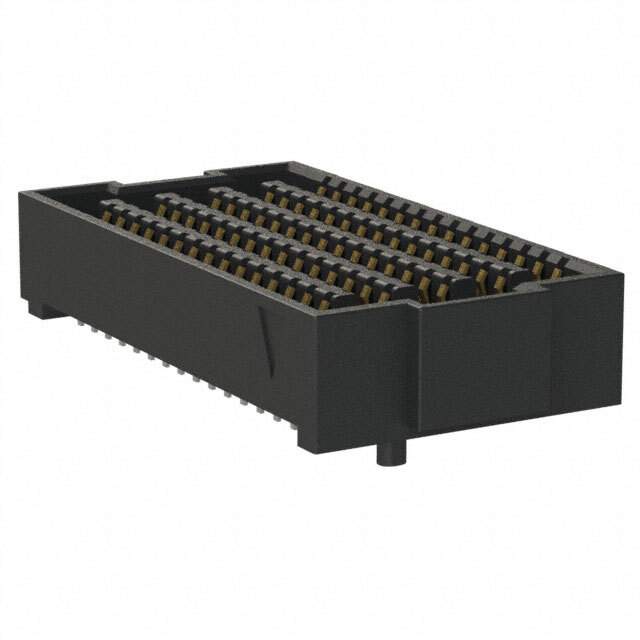

SEAF-15-05.0-S-10-1-A-K-TR

Name: SEAF-15-05.0-S-10-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293861
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-15-05.0-S-10-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-15-05.0-S-10-1-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	150
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-15
Other Names	612-SEAF-15-05.0-S-10-1-A-K-TRDKR,612-SEAF-15-05.0-S-10-1-A-K-TR,612-SEAF-15-05.0-S-10-1-A-K-TRCT,SEAF-15-05.0-S-10-1-A-K-TR
Standard Package	250
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293861-SEAF-15-05.0-S-10-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-15-05.0-S-10-1-A-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series high-density array female connector is a rectangular connector with a pitch of 0.050" (1.27mm) and 150 positions.

Pitch: 0.050" (1.27mm)
Number of Positions: 150
Features: Board guide, pick and place
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mounting Type: Surface mounting
Height Above Board: 0.199" (5.05mm)
Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
Packaging: Tape and reel
Standard Package: 250
Application: Mezzanine (board to board)
