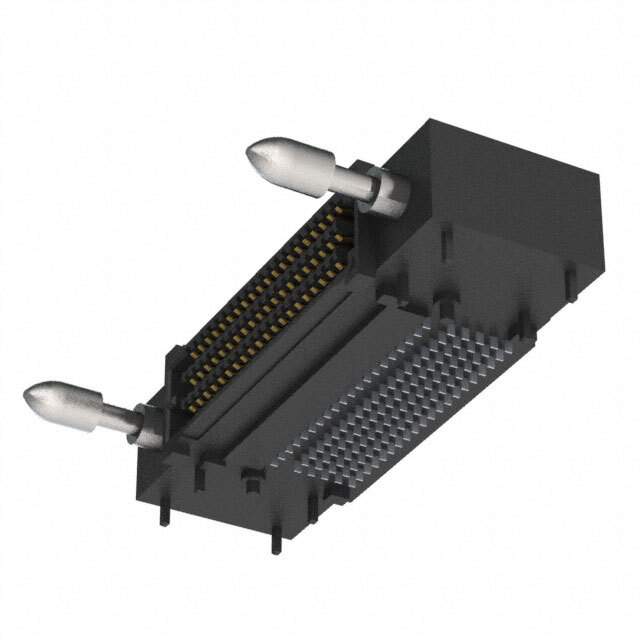

SEAF-20-01-L-06-1-RA-LP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-20-01-L-06-1-RA-LP-TR

Part No SEAF-20-01-L-06-1-RA-LP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-20-01-L-06-1-RA-LP-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 120
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting Type Surface Mount, Right Angle
Features Board Guide, Latches
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.411" (10.45mm)
Base Product Number SEAF-20
Standard Package 50
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293743-SEAF-20-01-L-06-1-RA-LP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-20-01-L-06-1-RA-LP-TR CAD Model

Description

The Samtec Inc. SEAF-20-01-L-06-1-RA-LP-TR is a high-density array, female connector that has 120 positions and comes in a tape and reel packaging.

  • Pitch: 0.050" (1.27mm)
  • Board Guide: Yes
  • Latches: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Height Above Board: 0.411" (10.45mm)
  • Mounting: Surface, Right Angle
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Series: SEARAY™ SEAF
  • Base Product Number: SEAF-20
  • Category: Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
