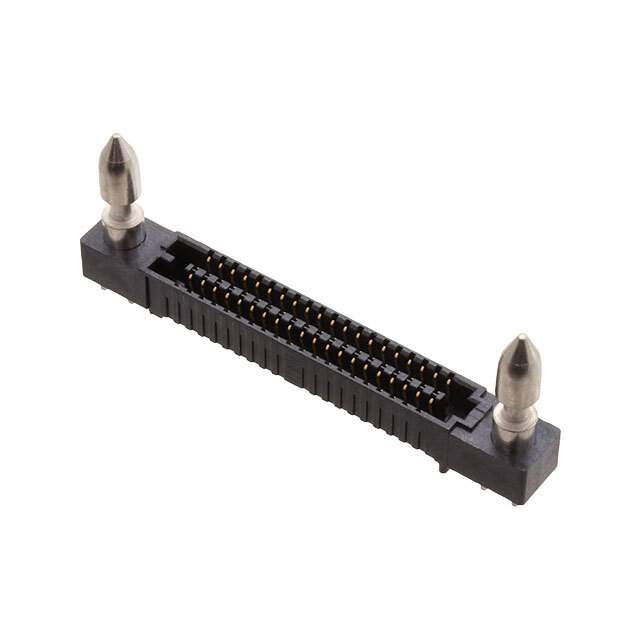

SEAF-20-05.0-L-04-2-A-LP-K-TR

Name: SEAF-20-05.0-L-04-2-A-LP-K-TR
Brand: Samtec Inc.
SKU: 1293787
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAF-20-05.0-L-04-2-A-LP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-05.0-L-04-2-A-LP-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Latches, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-20
Other Names	SAM15437TR,SAM15437DKRINACTIVE,SAM15437CT,SEAF-20-05.0-L-04-2-A-LP-K-TR,SAM15437DKR,SAM15437DKR
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293787-SEAF-20-05.0-L-04-2-A-LP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-05.0-L-04-2-A-LP-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. 1293787-SEAF-20-05 is a SEARAY SEAF series component with a pitch of 0.050" (1.27mm) and a contact finish of gold.

Pitch: 0.050" (1.27mm)
Contact Finish: Gold
Connector Type: High-density array, female
Number of Positions: 80
Features: Board guide, latches, and pick and place
Mounting: SMD (SMT)
Height Above Board: 0.199" (5.05mm)
