Same model may have multiple batches, images only for reference.

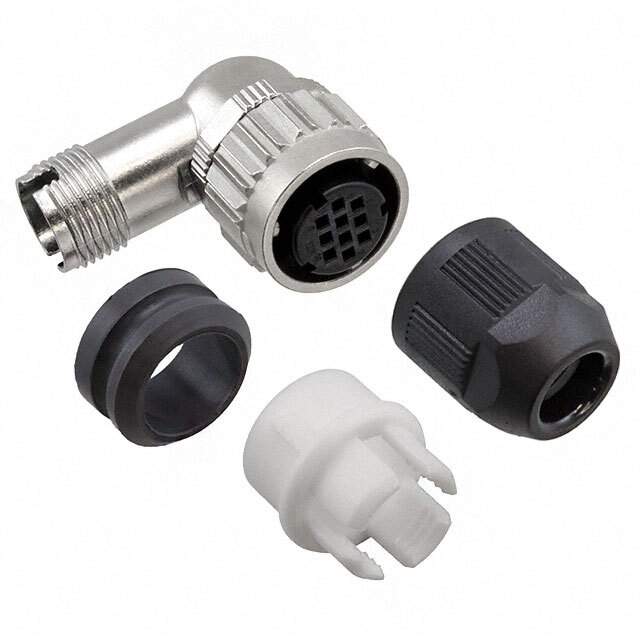

HR08D-12WLPB-10SC Real Image
Same model may have multiple batches, images only for reference.

HR08D-12WLPB-10SC

Part No HR08D-12WLPB-10SC
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN PLG HSG FMAL 10PS INLINE RA
Datasheet
HR08D-12WLPB-10SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Status Active
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 10
Shell Size - Insert 12
Contact Type Crimp
Mounting Free Hanging (In-Line), Right Angle
Fastening Type Push-Twist
Orientation Keyed
Shell Material Zinc Alloy
Shell Finish Nickel
Housing Color Silver
Ingress Protection IP67/68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Coupling Nut, Rotatable, Strain Relief
Coupling Nut Diameter 0.787" (20.00mm)
Coupling Nut Material, Plating Zinc Alloy, Nickel
Insert Material Polyphenylene Sulfide (PPS)
Contact Shape Circular
Temperature Range - Operating -20°C to 85°C
Win Source Part Number 1051577-HR08D-12WLPB-10SC
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian HR08D-12WLPB-10SC CAD Model

Description

The Hirose Electric Co Ltd HR08D-12WLPB-10SC is a plug housing connector with backshell, coupling nut, rotatable, and strain relief features. Hirose Electric Co Ltd HR08D-12WLPB-10SC is a plug housing connector with backshell, coupling nut, rotatable, and strain relief features.

  • Connector Type: plug housing
  • Features: backshell, coupling nut, rotatable, strain relief
  • Socket Type: female
  • Positions: 10
  • Keyed: yes
  • Housing Color: silver
  • Ingress Protection: IP67/68
  • Dust Tight: yes
  • Waterproof: yes
  • HTSUS Code: 8536.90.4000
  • Package: tray
  • Supply and Demand Status: balance
  • Quantity per Package: 50
