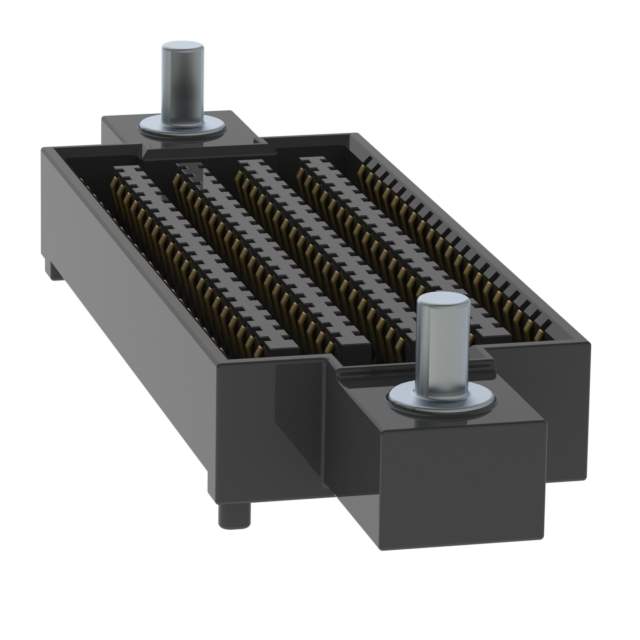

SEAF-20-05.0-S-10-2-A-PP-K-TR

Name: SEAF-20-05.0-S-10-2-A-PP-K-TR
Brand: Samtec Inc.
SKU: 1293682
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-05.0-S-10-2-A-PP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-05.0-S-10-2-A-PP-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	200
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-20
Standard Package	175
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293682-SEAF-20-05.0-S-10-2-A-PP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-05.0-S-10-2-A-PP-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series is a high-density array, female connector type with 200 positions and a pitch of 0.050" (1.27mm).

Positions: 200
Pitch: 0.050" (1.27mm)
Features: Board guide, pick and place
Contact Finish: Gold, 30.0µin (0.76µm)
Package: Tape and Reel (TR)
Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
Height Above Board: 0.199" (5.05mm)
Mounting: SMD (SMT)
Manufacturer: Samtec Inc.
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
