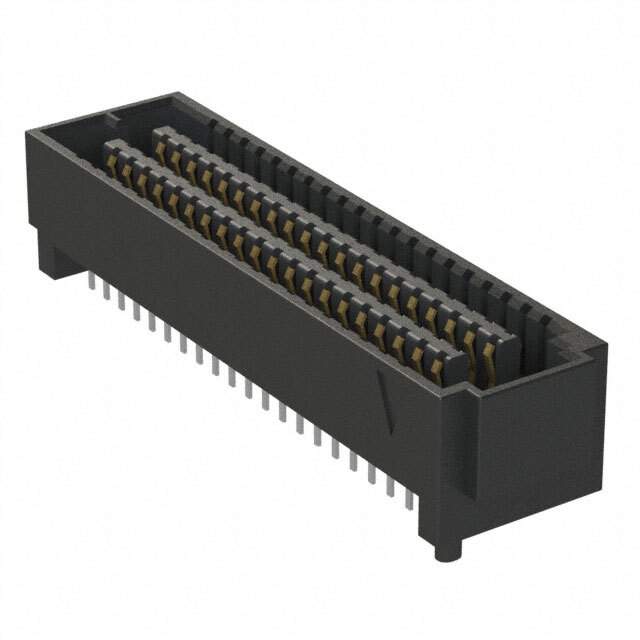

SEAF-20-06.0-L-05-2-A-K-TR

Name: SEAF-20-06.0-L-05-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293775
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-06.0-L-05-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-06.0-L-05-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	100
Pitch	0.050" (1.27mm)
Number of Rows	5
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm
Height Above Board	0.238" (6.05mm)
Base Product Number	SEAF-20
Standard Package	325
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293775-SEAF-20-06.0-L-05-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-06.0-L-05-2-A-K-TR CAD Model

Alternative Products

Description

The SEAF series connector from Samtec Inc. is a high-density array connector with a female feature, making it ideal for mezzanine (board-to-board) applications.

Positions: One hundred
Contact Finish: Gold
Insulation Material: Liquid crystal polymer (LCP)
Color Finish: Black
Pitch: 0.050" (1.27mm)
Height Above Board: 0.238" (6.05mm)
Mounting: SMD (SMT)
Temperature Range: -55°C to 125°C
Packaging: Tape and reel
Standard Package: Three hundred and twenty-five connectors
