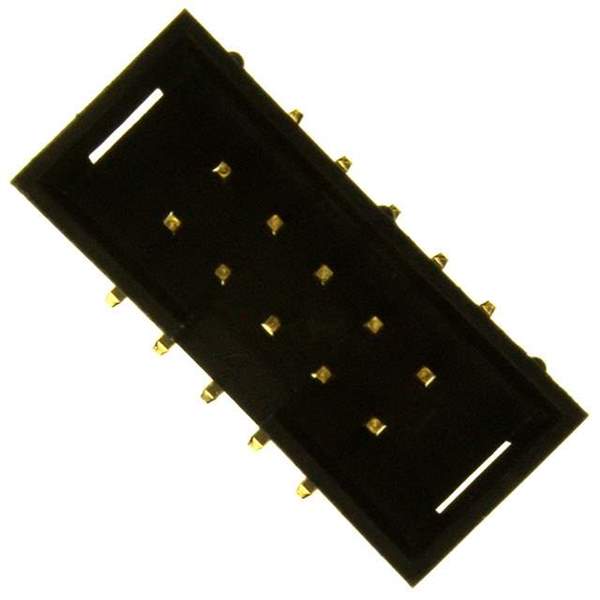

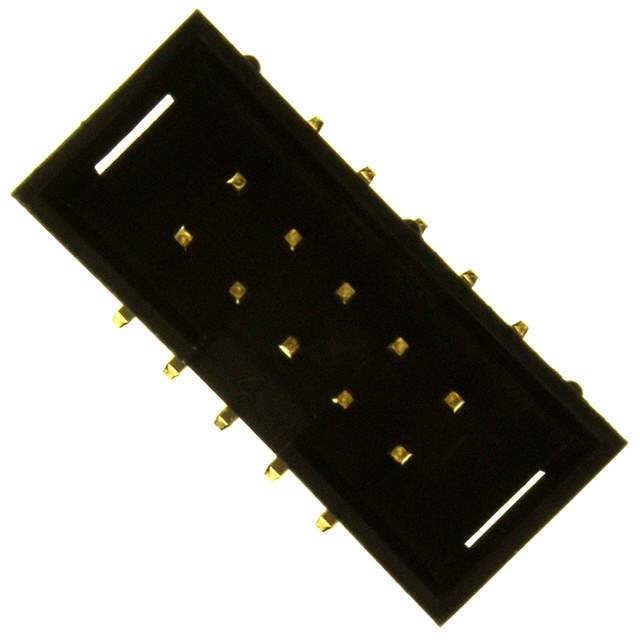

SBH11-NBPC-D05-SM-BK

Name: SBH11-NBPC-D05-SM-BK
Brand: Sullins Connector Solutions
SKU: 1332353
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SBH11-NBPC-D05-SM-BK
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2.54MM / Connector Header Surface Mount 10 position 0.100" (2.54mm)
Datasheet	SBH11-NBPC-D05-SM-BK Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Sullins Connector Solutions
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.358" (9.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Mated Stacking Heights	11.17mm, 12.72mm, 14.87mm, 19.87mm
Contact Finish Thickness - Post	Flash
Base Product Number	SBH11
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	S9185,SBH11NBPCD05SMBK
Standard Package	29
Win Source Part Number	1332353-SBH11-NBPC-D05-SM-BK
Ultra Librarian 3D Model	Ultra Librarian SBH11-NBPC-D05-SM-BK CAD Model

Alternative Products

Description

The Sullins Connector Solutions 1332353-SBH11-NBPC-D05-SM-BK header is a rectangular connector with male pins.

Positions: 10
Positions Loaded: All
Rows: 2
Pitch-Mating: 0.100” (2.54mm)
Row Spacing-Mating: 0.100” (2.54mm)
Connector Type: Header
Shrouding: Shrouded-4 Wall
Feature: Keying Slot
Contact Material: Brass
Contact Plating: Gold
Contact Finish Thickness: Flash
Insulation Material: Polyamide (PA) Nylon
Insulation Color: Black
Insulation Height: 0.358” (9.10mm)
Current Rating: 3A
Operating Temperature: -40°C to 105°C
Package: Tube
Standard Package: 29
Application: Board to Board or Cable
