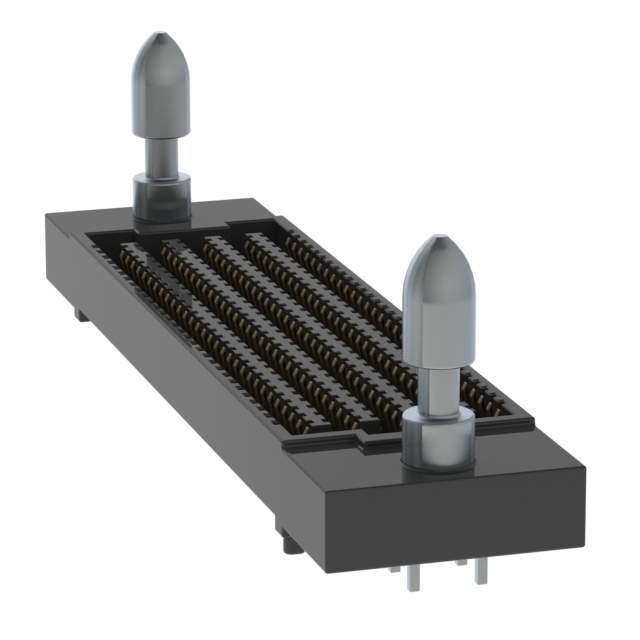

SEAF-30-05.0-L-10-2-A-LP-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-05.0-L-10-2-A-LP-K-TR

Part No SEAF-30-05.0-L-10-2-A-LP-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-05.0-L-10-2-A-LP-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type High Density Array, Female
Number of Positions 300
Pitch 0.050" (1.27mm)
Number of Rows 10
Mounting SMD (SMT)
Features Board Guide, Latches, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-30
Other Names ,612-SEAF-30-05.0-L-10-2-A-LP-K-CT,612-SEAF-30-05.0-L-10-2-A-LP-K-TR,SEAF-30-05.0-L-10-2-A-LP-K-TR
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293796-SEAF-30-05.0-L-10-2-A-LP-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-05.0-L-10-2-A-LP-K-TR CAD Model

Description

The SEAF-30-05.0-L-10-2-A-LP-K-TR is a rectangular connector array designed for board-to-board connections.

  • Series: SEARAY™ SEAF
  • Manufacturer: Samtec Inc.
  • Number of Positions: 300
  • Pitch: 0.050" (1.27mm)
  • Connector Type: High-density array
  • Contacts: Female
  • Contact Finish: Gold
  • Package: Tape & reel (TR) or cut tape (CT)
  • Height Above Board: 0.199" (5.05mm)
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Features: Board guide, latches, and pick and place
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • HTSUS code: 8536.69.4040
  • Win Source Part Number: 1293796-SEAF-30-05.0-L-10-2-A-LP-K-TR
