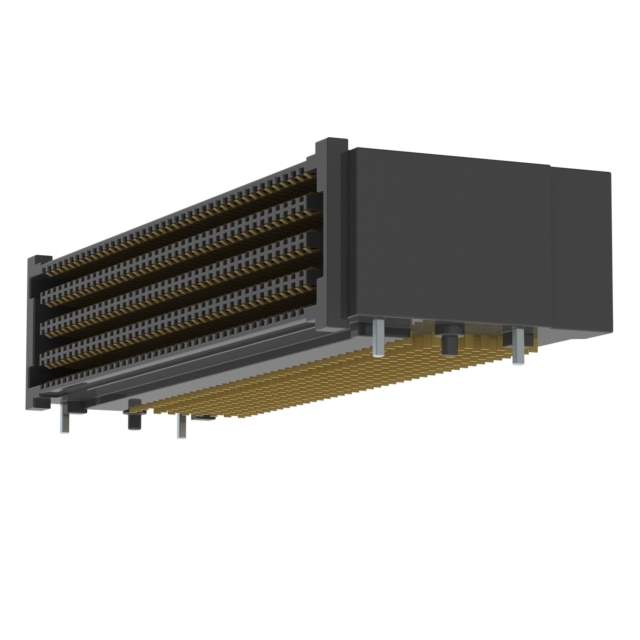

SEAF-40-01-L-08-1-RA-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-40-01-L-08-1-RA-K-TR

Part No SEAF-40-01-L-08-1-RA-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-40-01-L-08-1-RA-K-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 320
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting Type Surface Mount, Right Angle
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.511" (12.99mm)
Base Product Number SEAF-40
Standard Package 75
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293605-SEAF-40-01-L-08-1-RA-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-40-01-L-08-1-RA-K-TR CAD Model

Description

The Samtec Inc. SEAF-40-01-L-08-1-RA-K-TR is a high-density array, female type connector that belongs to the rectangular connectors - arrays, edge type, mezzanine (board to board) category.

  • Positions: 320
  • Pitch: 0.050" (1.27mm)
  • Features: board guide and pick and place feature
  • Mounting: surface mount, right-angle technology
  • Contact Finish: gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • MSL Level: 1 (Unlimited)
