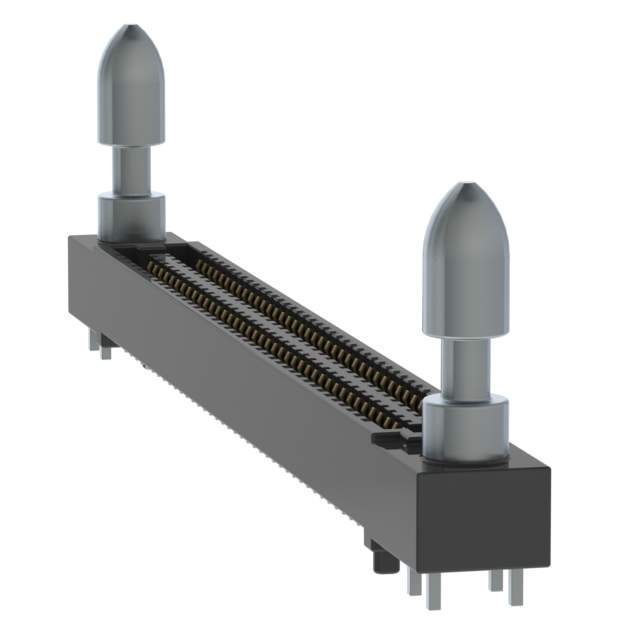

SEAF-40-05.0-L-04-1-A-LP-K-TR

Name: SEAF-40-05.0-L-04-1-A-LP-K-TR
Brand: Samtec Inc.
SKU: 1293734
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAF-40-05.0-L-04-1-A-LP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-05.0-L-04-1-A-LP-K-TR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Latches, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-40
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293734-SEAF-40-05.0-L-04-1-A-LP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-05.0-L-04-1-A-LP-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series high density array female connector from Samtec Inc. comes with 160 positions, 4 rows, and a pitch of 0.050" (1.27mm).

Board Guide: Yes
Latches: Yes
Pick and Place Features: Yes
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Height Above Board: 0.199" (5.05mm)
Mounting Technology: SMD (SMT)
Packaging: Tape and reel
Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
Applications: Rectilinear connectors, arrays, edge type, mezzanine (board to board)
RoHS: Non-compliant
