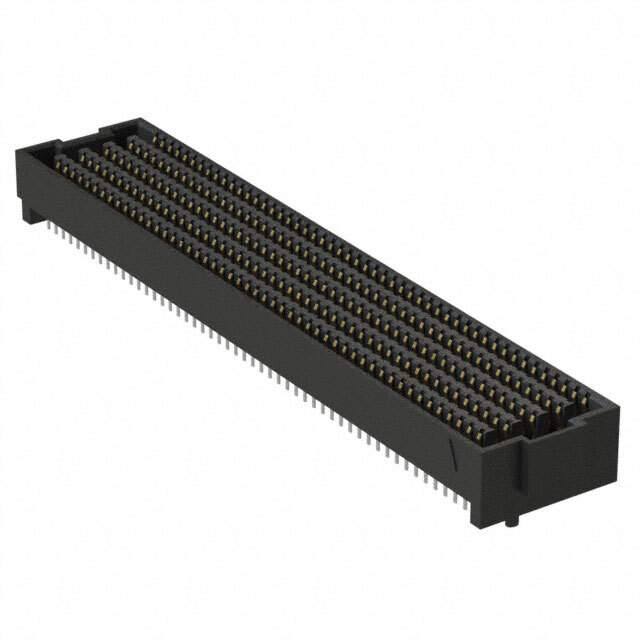

SEAF-50-06.0-S-10-1-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-50-06.0-S-10-1-A-K-TR

Part No SEAF-50-06.0-S-10-1-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-50-06.0-S-10-1-A-K-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 500
Pitch 0.050" (1.27mm)
Number of Rows 10
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm
Height Above Board 0.238" (6.05mm)
Base Product Number SEAF-50
Standard Package 225
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293580-SEAF-50-06.0-S-10-1-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-50-06.0-S-10-1-A-K-TR CAD Model

Description

The Samtec SEARAY™ SEAF 1293580-SEAF-50-06.0-S-10-1-A-K-TR high-density array connector is a female connector with 500 positions and a pitch of 0.050" (1.27mm).

  • Mated Stacking Height: 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, and 19mm
  • Height Above Board: 0.238" (6.05mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Mounting: SMD (SMT)
