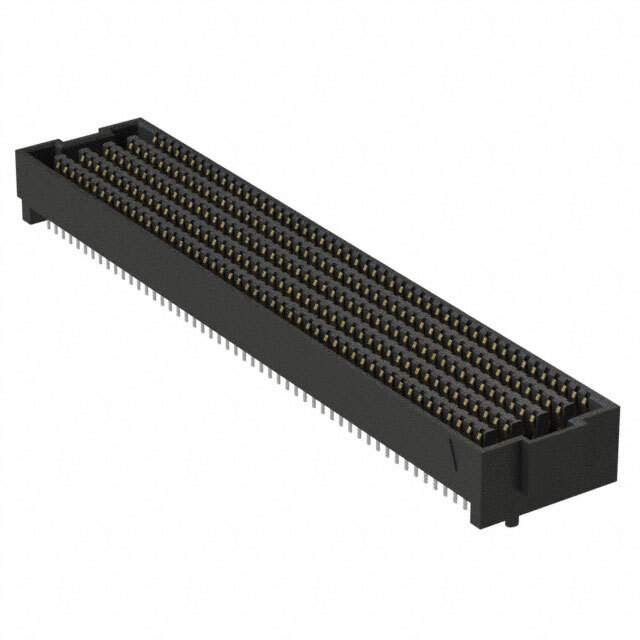

Same model may have multiple batches, images only for reference.

SEAF-50-06.5-L-10-2-A-K-TR

Name: SEAF-50-06.5-L-10-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293848
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-50-06.5-L-10-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-50-06.5-L-10-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	500
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board	0.258" (6.55mm)
Base Product Number	SEAF-50
Other Names	SAM15062CT,SAM15062DKR,SEAF-50-06.5-L-10-2-A-K-TR,SEAF-50-06.5-L-10-2-A-K-FR,SAM15062DKR,SAM15062DKRINACTIVE,SAM15062TR
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293848-SEAF-50-06.5-L-10-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-50-06.5-L-10-2-A-K-TR CAD Model

Alternative Products

Description

The SEAF-50-06.5-L-10-2-A-K-TR is a high-density array, female connector from the SEARAY™ series designed for board-to-board mezzanine applications.

Number of Positions: 500
Pitch: 0.050 inches (1.27mm)
Height Above Board: 0.258 inches (6.55mm)
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: Tape and reel or cut tape
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, and 19.5mm
Features: Board guides and pick-and-place capabilities
