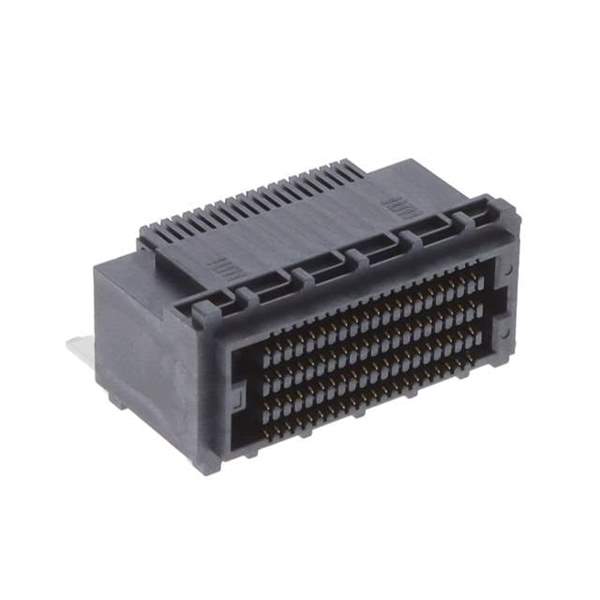

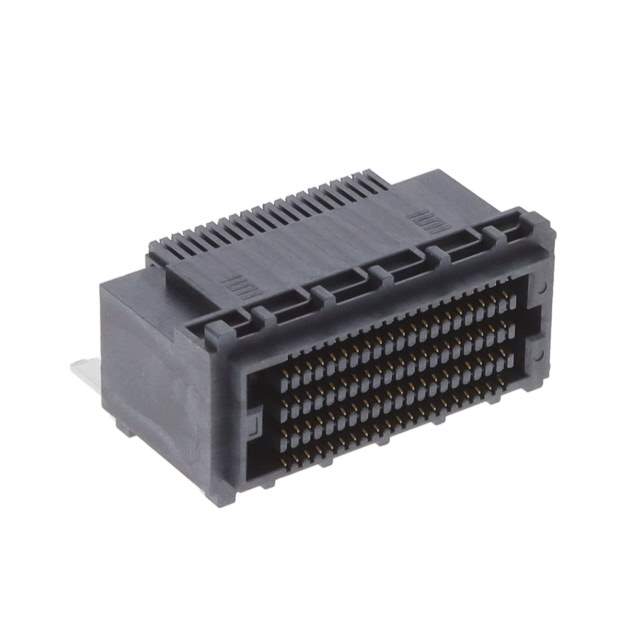

Same model may have multiple batches, images only for reference.

SEAF8-20-1-S-08-2-RA

Name: SEAF8-20-1-S-08-2-RA
Brand: Samtec Inc.
SKU: 1293921
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF8-20-1-S-08-2-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-20-1-S-08-2-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.031" (0.80mm)
Number of Rows	8
Mounting Type	Surface Mount, Right Angle
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Base Product Number	SEAF8-20
Other Names	612-SEAF8-20-1-S-08-2-RADKR,612-SEAF8-20-1-S-08-2-RATR,SEAF8-20-1-S-08-2-RA,612-SEAF8-20-1-S-08-2-RACT
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293921-SEAF8-20-1-S-08-2-RA
Ultra Librarian 3D Model	Ultra Librarian SEAF8-20-1-S-08-2-RA CAD Model

Alternative Products

Description

The SEAF8-20-1-S-08-2-RA is a high-density array, female connector from Samtec Inc.

Series: SEARAY™ SEAF
Positions: 160
Pitch: 0.031 inches (0.80mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Mounting: Surface mount
Orientation: Right-angle mounted
Applications: Data communications, telecommunications, and industrial equipment
