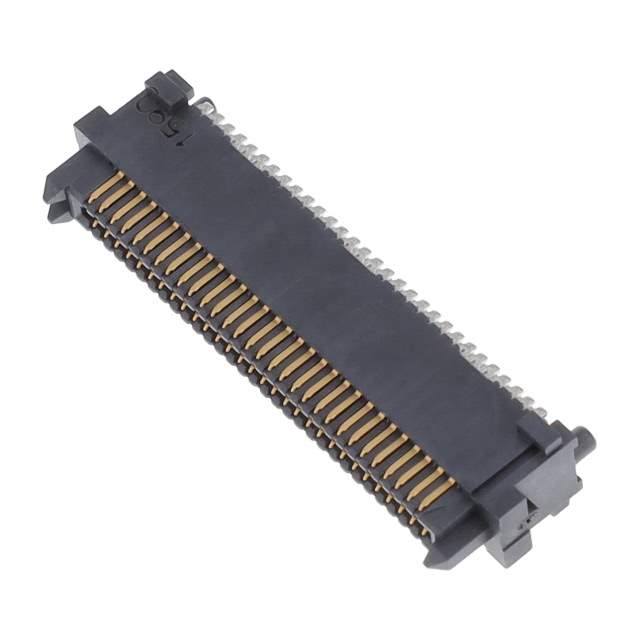

SEAM8-30-S05.0-S-04-2-K

Name: SEAM8-30-S05.0-S-04-2-K
Brand: Samtec Inc.
SKU: 1293503
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAM8-30-S05.0-S-04-2-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAM8-30-S05.0-S-04-2-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Tape & Reel
Product Status	Obsolete
Connector Type	High Density Array, Male
Number of Positions	120
Pitch	0.031" (0.80mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	10mm
Height Above Board	0.297" (7.54mm)
Base Product Number	SEAM8-30
Other Names	612-SEAM8-30-S05.0-S-04-2-KDKR,SEAM8-30-S05.0-S-04-2-K,612-SEAM8-30-S05.0-S-04-2-KCT,612-SEAM8-30-S05.0-S-04-2-KTR
Standard Package	275
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293503-SEAM8-30-S05.0-S-04-2-K
Ultra Librarian 3D Model	Ultra Librarian SEAM8-30-S05.0-S-04-2-K CAD Model

Alternative Products

Description

The Samtec Inc. SEARAY™ SEAM series 120-position high density array male connectors are mounted through surface mount technology (SMT) and have a pitch of 0.031" (0.80mm).

Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Packaging: Tape and Reel
Height Above Board: 0.297" (7.54mm)
Mated Stacking Height: 10mm
