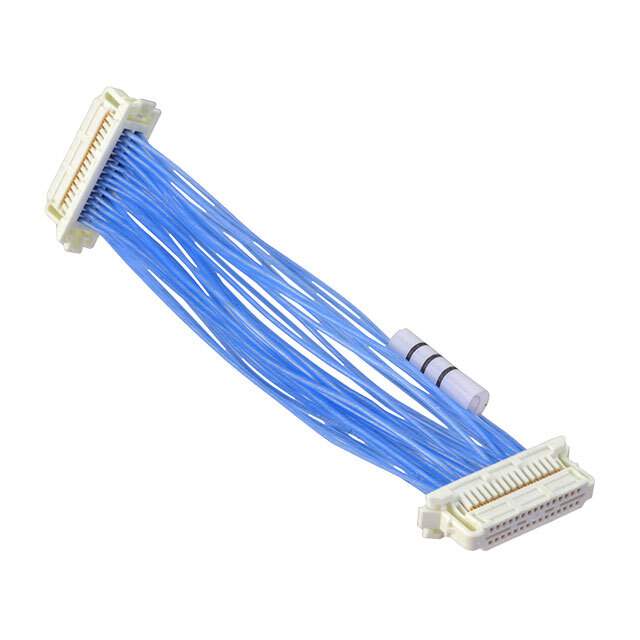

SESDT-15-32-G-03.0-L1 Real Image
Same model may have multiple batches, images only for reference.

SESDT-15-32-G-03.0-L1

Part No SESDT-15-32-G-03.0-L1
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SESDT-15-32-G-03.0-L1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SESDT
Package Bulk
Connector Type Socket to Socket
Number of Positions 30
Number of Rows 2
Pitch - Connector 0.031" (0.80mm)
Length 0.250' (76.20mm, 3.00")
Features Latch Lock
Color Blue, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Base Product Number SESDT-15
Other Names SESDT-15-32-G-03.0-L1,612-SESDT-15-32-G-03.0-L1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1312780-SESDT-15-32-G-03.0-L1
Ultra Librarian 3D Model Ultra Librarian SESDT-15-32-G-03.0-L1 CAD Model

Description

The Samtec Inc. SESDT-15-32-G-03.0-L1 is a crimped rectangular cable assembly with a latch lock feature.

  • Lock Type: Latch Lock
  • Positions: 30
  • Color: Blue
  • Length: 0.250' (76.20mm, 3.00")
  • Shielding: Unshielded
  • Connector Type: Socket to Socket
  • Pitch: 0.031" (0.80mm)
  • Series: Tiger Eye™ SESDT
  • Popularity: Medium
