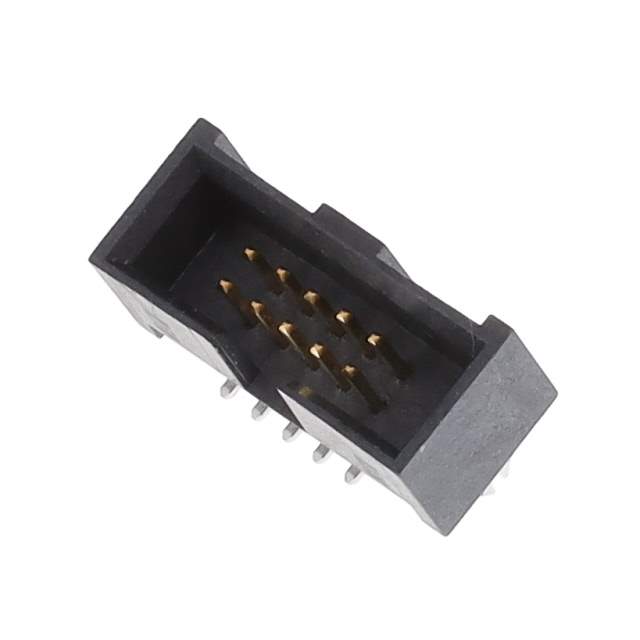

SHF-105-01-L-D-SM-LC-K-TR Real Image
Same model may have multiple batches, images only for reference.

SHF-105-01-L-D-SM-LC-K-TR

Part No SHF-105-01-L-D-SM-LC-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-105-01-L-D-SM-LC-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock, Keying Slot, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-105
Other Names 612-SHF-105-01-L-D-SM-LC-K-DKR,612-SHF-105-01-L-D-SM-LC-K-TR,SHF-105-01-L-D-SM-LC-K-TR,612-SHF-105-01-L-D-SM-LC-K-CT
Standard Package 450
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293166-SHF-105-01-L-D-SM-LC-K-TR
Ultra Librarian 3D Model Ultra Librarian SHF-105-01-L-D-SM-LC-K-TR CAD Model

Description

The SHF series male pin header connector is a rectangular connector used for board-to-cable/wire connections.

  • Positions: 10
  • Rows: 2
  • Positions Loaded: All
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Design: Shrouded 4-Wall
  • Features: Board Lock, Keying Slot, and Pick and Place
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Contact Shape: Square
  • Pitch (Mating): 0.050 inches (1.27mm)
  • Contact Length (Mating): 0.120 inches (3.05mm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 3A
  • REACH: Unaffected
  • Packaging: Tape and Reel
  • Standard Package: 450
