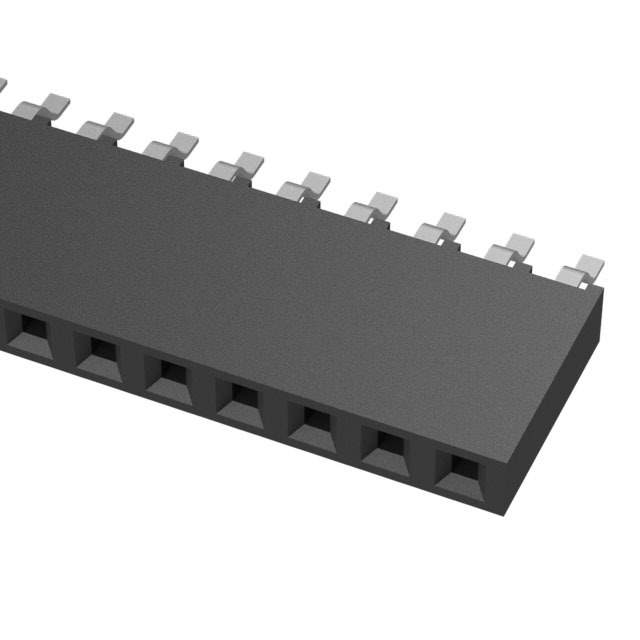

SMH-110-02-L-S-TR Real Image
Same model may have multiple batches, images only for reference.

SMH-110-02-L-S-TR

Part No SMH-110-02-L-S-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMH-110-02-L-S-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SMH
Package Tape & Reel (TR)
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SMH-110
Standard Package 575
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292515-SMH-110-02-L-S-TR
Ultra Librarian 3D Model Ultra Librarian SMH-110-02-L-S-TR CAD Model

Description

The SMH series 10-position 1-row receptacle connector from Samtec Inc. is made of black liquid crystal polymer (LCP) insulation material and features a square contact shape.

  • Series: SMH
  • Positions: 10
  • Rows: 1
  • Connector Type: Receptacle
  • Insulation Material: Black liquid crystal polymer (LCP)
  • Contact Shape: Square
  • Pitch-Mating: 0.100" (2.54mm)
  • Mounting Type: Surface mount, right angle
  • Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish-Post: Tin
  • Contact Type: Forked
  • Termination: Solder
  • Temperature Range: -55°C to 125°C
  • Application: Board-to-board
