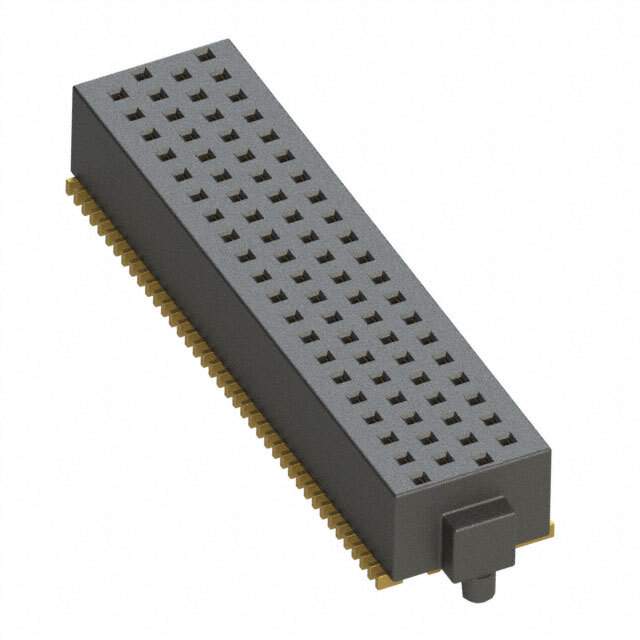

Same model may have multiple batches, images only for reference.

SOLC-120-02-S-Q-A

Name: SOLC-120-02-S-Q-A
Brand: Samtec Inc.
SKU: 1293055
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SOLC-120-02-S-Q-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SOLC-120-02-S-Q-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FOURRAY™ SOLC
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	80
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.160" (4.06mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide
Current Rating (Amps)	2.4A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SOLC-120
Standard Package	20
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1293055-SOLC-120-02-S-Q-A
Ultra Librarian 3D Model	Ultra Librarian SOLC-120-02-S-Q-A CAD Model

Alternative Products

Description

The SOLC-120-02-S-Q-A is a board-to-board connector designed by Samtec Inc.

Pitch: 1.27mm
Contacts: Up to 80
Current Rating: 2.4A per contact
Fastening Type: Push-Pull
