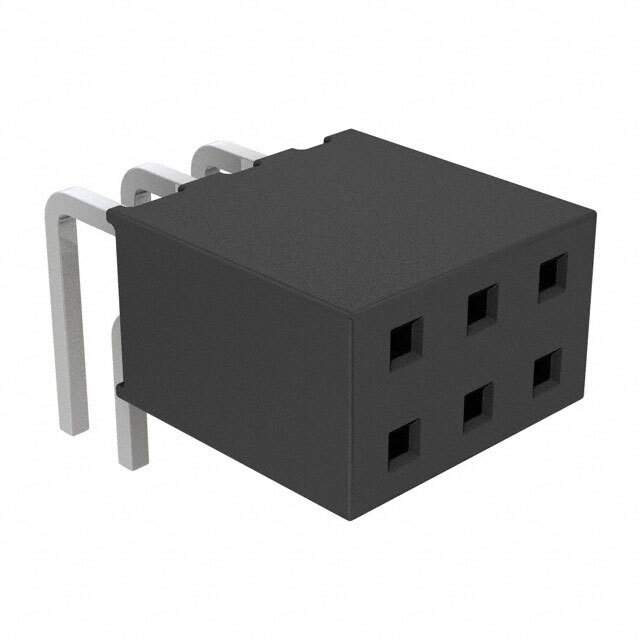

The SQT-103-01-L-D-RA is a rectangular connector that belongs to the SQT series of connectors, interconnects.

• Positions: 6
• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-pull
• Contact Material: Phosphor bronze
• Insulation Material: Liquid crystal polymer (LCP)
• Style: Board-to-board or cable
• Pitch-Mating: 0.079" (2.00mm)
• Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Mounting Type: Through hole, right-angle
• Row Spacing-Mating: 0.079" (2.00mm)
• Contact Length-Post: 0.090" (2.29mm)
• Insulation Height: 0.157" (4.00mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
• MSL Level: 1 (Unlimited shelf life)
• Current Rating: 5.1A per contact
• HTSUS: 8536.69.4040
• Manufacturer: Samtec Inc.
• Other Names: SAM1246-03
• Base Product Number: SQT-103
