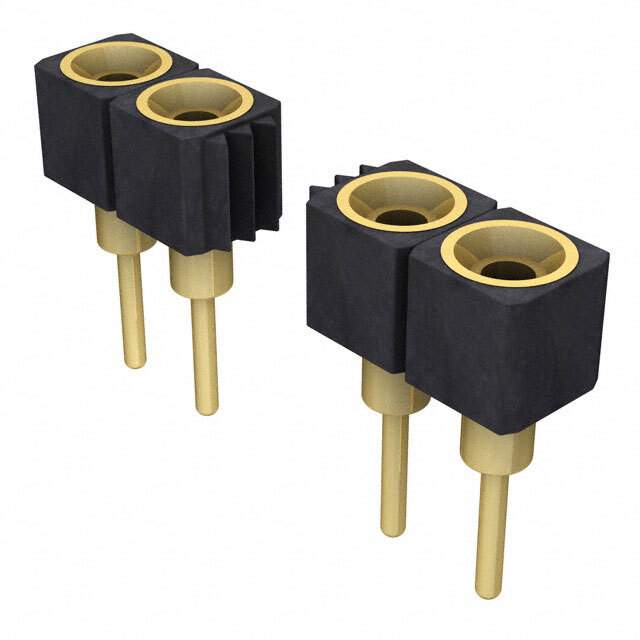

The SS-117-G-2 electronic component is a connector product manufactured by Samtec Inc.

• Series: SS
• Positions: 17
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: One
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Beryllium Copper
• Voltage Rating: Not Specified
• Mated Stacking Heights: Not Specified
• Ingress Protection: Not Specified
• Material Flammability Rating: Not Specified
• Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
• Insulation Color: Black
• Mounting Type: Through-Hole
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Gold, 30.0µin (0.76µm)
• Contact Finish-Post: Gold, 10.0µin (0.25µm)
• Row Spacing-Mating: Not Specified
• Contact Length-Post: Not Specified
• Insulation Height: 0.100" (2.54mm)
• Contact Shape: Circular
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating: Not Specified
• REACH Status: REACH Unaffected
• HTSUS: 8536.69.4040
