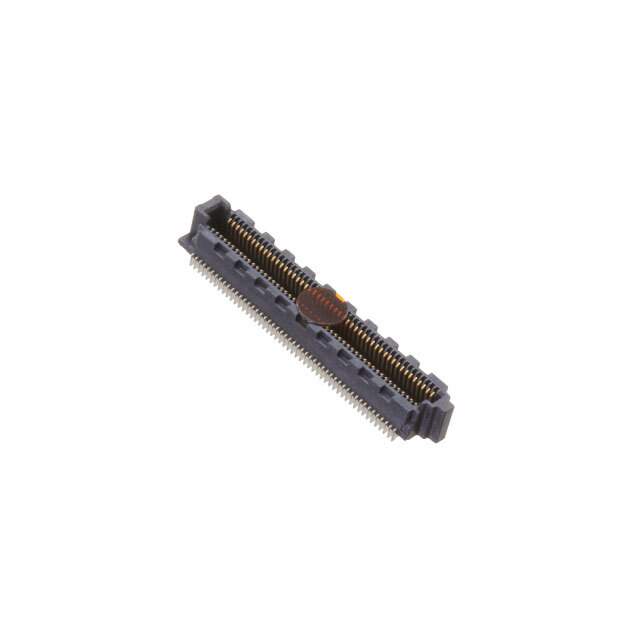

SS4-50-3.00-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

SS4-50-3.00-L-D-K-TR

Part No SS4-50-3.00-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SS4-50-3.00-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ SS4
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 100
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 4mm, 4.5mm, 5.5mm
Height Above Board 0.112" (2.85mm)
Base Product Number SS4-50
Other Names SAM14573TR,SS4-50-3.00-L-D-K-TR,SAM14573DKR,SS4-50-3.00-L-D-K-FR,SAM14573CT
Standard Package 675
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293975-SS4-50-3.00-L-D-K-TR
Ultra Librarian 3D Model Ultra Librarian SS4-50-3.00-L-D-K-TR CAD Model

Description

This connector is a part of the Razor Beam SS4 series and has a Win Source Part Number of 1293975-SS4-50-3.00-L-D-K-TR. It is an edge type, mezzanine connector that falls under the category of rectangular connectors and arrays.

  • Series: Razor Beam SS4
  • Win Source Part Number: 1293975-SS4-50-3.00-L-D-K-TR
  • Type: Edge type, mezzanine connector
  • Category: Rectangular connectors and arrays
  • Positions: 100
  • Connector Type: Socket type connector with outer shroud contacts
  • Pitch: 0.016 inches
  • Application: Pick and place applications
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0 microinches (0.25 micrometers)
  • Operating Temperature Range: -55 degrees Celsius to 125 degrees Celsius
