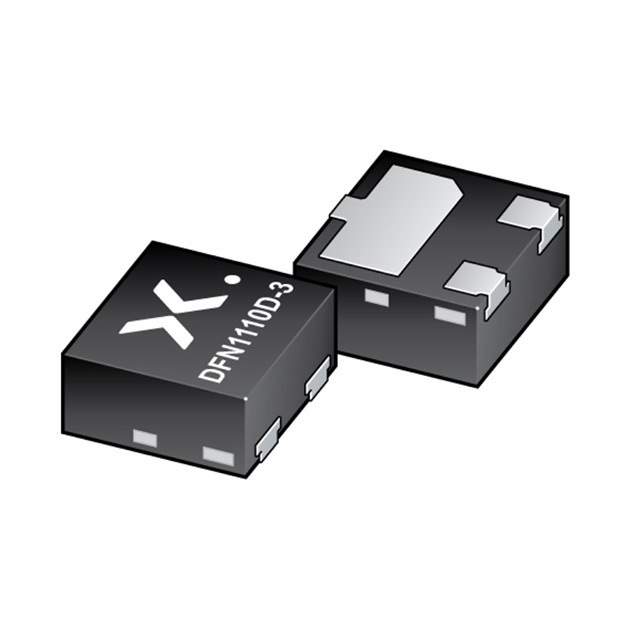

Part No BAT54QBZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA 3DFN / Diode Schottky 30 V 200mA (DC) Surface Mount, Wettable Flank DFN1110D-3
Datasheet
BAT54QBZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3
Operating Temperature - Junction 150°C
Base Product Number BAT54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-BAT54QBZCT,934660944147,1727-BAT54QBZDKR,1727-BAT54QBZTR
Standard Package 5,000
Win Source Part Number 992091-BAT54QBZ
Ultra Librarian 3D Model Ultra Librarian BAT54QBZ CAD Model

Description

The BAT54QBZ is a high-performance Schottky diode from Nexperia USA Inc.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Maximum Forward Voltage: 800mV @ 100mA
  • Reverse Recovery Time: 5ns
  • Current Reverse Leakage @ Vr: 2 µA @ 25V
  • Capacitance @ Vr, F: 10pF @ 1V, 1MHz
  • Designed for: Use in integrated circuits and other electronic devices that require high-performance Schottky diodes.
