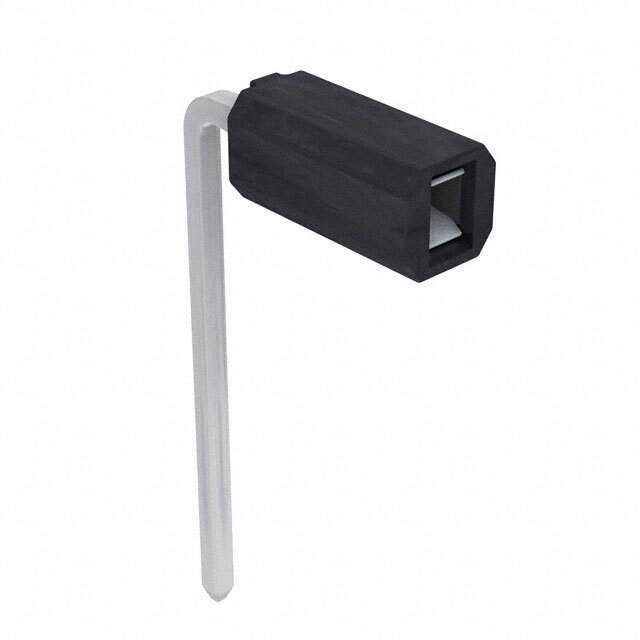

SSA-101-W-T-RA Real Image
Same model may have multiple batches, images only for reference.

SSA-101-W-T-RA

Part No SSA-101-W-T-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSA-101-W-T-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSA
Package Bulk
Connector Type Receptacle, Breakaway
Contact Type Female Socket
Style Board to Board
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Wire Wrap
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.575" (14.61mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Voltage Rating 1000V
Insulation Material Polyethylene Terephthalate (PET), Polyester
Contact Material Phosphor Bronze
Base Product Number SSA-101
Other Names SAM1126-01
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291983-SSA-101-W-T-RA
Ultra Librarian 3D Model Ultra Librarian SSA-101-W-T-RA CAD Model

Description

The SSA series from Samtec Inc. offers a high-quality solution for your rectangular connector needs.

  • Connector Type: receptacle
  • Positions: 1
  • Contact Type: female socket
  • Rows: single
  • Positions Loaded: all
  • Pitch: 0.100” (2.54mm)
  • Voltage Rating: 1000V
  • Contact Material: phosphor bronze
  • Contact Finish: tin
  • Mounting: through-hole and right angle
  • Fastening Type: push-pull
  • Package: bulk
  • Insulation Material: Polyethylene Terephthalate (PET), Polyester
  • Insulation Color: black
