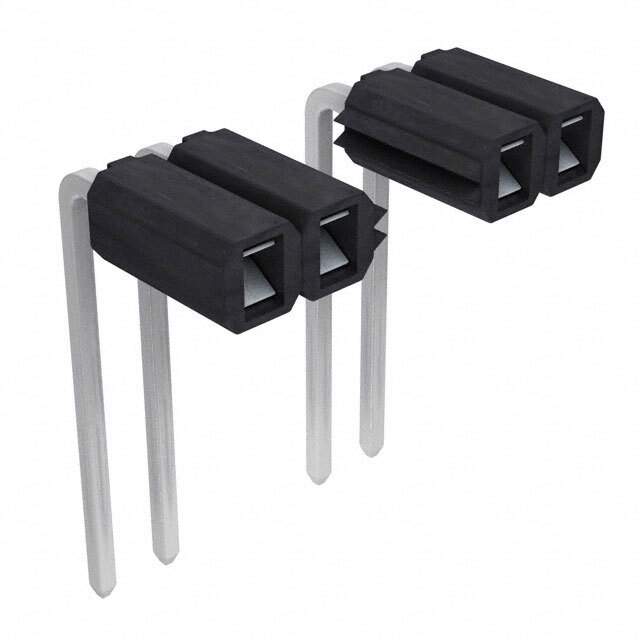

SSA-132-W-T-RA Real Image
Same model may have multiple batches, images only for reference.

SSA-132-W-T-RA

Part No SSA-132-W-T-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSA-132-W-T-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSA
Package Bulk
Connector Type Receptacle, Breakaway
Contact Type Female Socket
Style Board to Board
Number of Positions 32
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Wire Wrap
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.575" (14.61mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Voltage Rating 1000V
Insulation Material Polyethylene Terephthalate (PET), Polyester
Contact Material Phosphor Bronze
Base Product Number SSA-132
Other Names SAM1126-32
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292111-SSA-132-W-T-RA
Ultra Librarian 3D Model Ultra Librarian SSA-132-W-T-RA CAD Model

Description

The SSA series 32-position female socket receptacle connector is designed to be used in board-to-board applications.

  • Termination: Wire Wrap
  • Fastening: Push-Pull
  • Insulation Color: Black
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyethylene Terephthalate (PET) Polyester
  • Voltage Rating: 1000V
  • Temperature Range: -55°C to 105°C
  • Package: Bulk
  • Material Flammability Rating: UL94 V-0
  • Mated Stacking Heights: Not Specified
  • Ingress Protection: Not Specified
