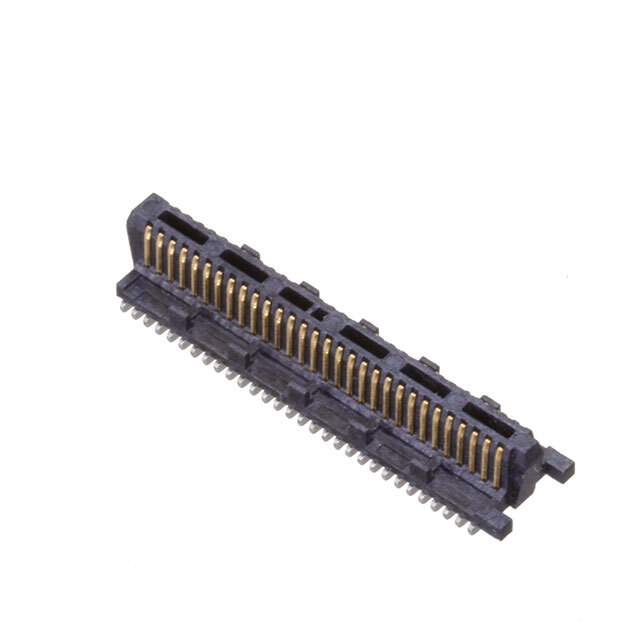

ST5-30-1.00-L-D-P-TR

Name: ST5-30-1.00-L-D-P-TR
Brand: Samtec Inc.
SKU: 1293954
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST5-30-1.00-L-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	ST5-30-1.00-L-D-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ ST5
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	60
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm
Height Above Board	0.121" (3.07mm)
Base Product Number	ST5-30
Other Names	SAM14642DKR,ST5-30-1.00-L-D-P-TR,ST5-30-1.00-L-D-P-FR,SAM14642TR,SAM14642CT
Standard Package	1,200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293954-ST5-30-1.00-L-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian ST5-30-1.00-L-D-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. ST5-30-1.00-L-D-P-TR is a rectangular connector array designed for board-to-board mezzanine applications.

Positions: 60
Pitch: 0.020 inches
Connector Type: Header, center strip contacts
Contact Finish: Gold
Package: Tape and Reel
Mounting: Surface Mountable
Height Above Board: 0.121 inches
Applications: Telecommunications equipment, data storage devices, and computer servers
