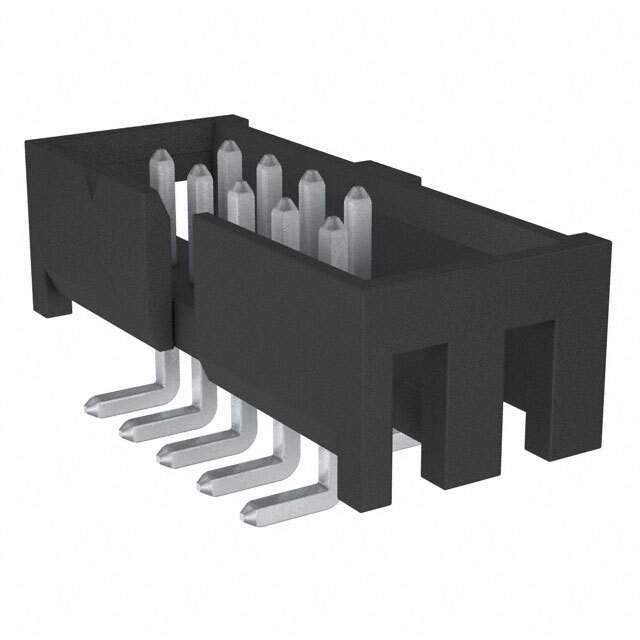

Same model may have multiple batches, images only for reference.

STMM-105-02-T-D-SM-10

Name: STMM-105-02-T-D-SM-10
Brand: Samtec Inc.
SKU: 1293208
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	STMM-105-02-T-D-SM-10
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	STMM-105-02-T-D-SM-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, STMM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	9
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.190" (4.83mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	STMM-105
Other Names	Q5932466
Standard Package	35
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293208-STMM-105-02-T-D-SM-10
Ultra Librarian 3D Model	Ultra Librarian STMM-105-02-T-D-SM-10 CAD Model

Alternative Products

Description

The 1293208-STMM-105-02-T-D-SM-10 is a 10-position male pin header connector from Samtec Inc.'s Flex Stack STMM series.

Positions: 10
Series: Flex Stack STMM
Application: Board-to-Cable/Wire
Pitch-Mating: 0.079 inches (2.00mm)
Shrouding: Shrouded 4-wall
Insulation Material: Black liquid crystal polymer (LCP)
Current Rating: 3A
Temperature Range: -55°C to 105°C
RoHS: Compliant
Standard Package: 35
