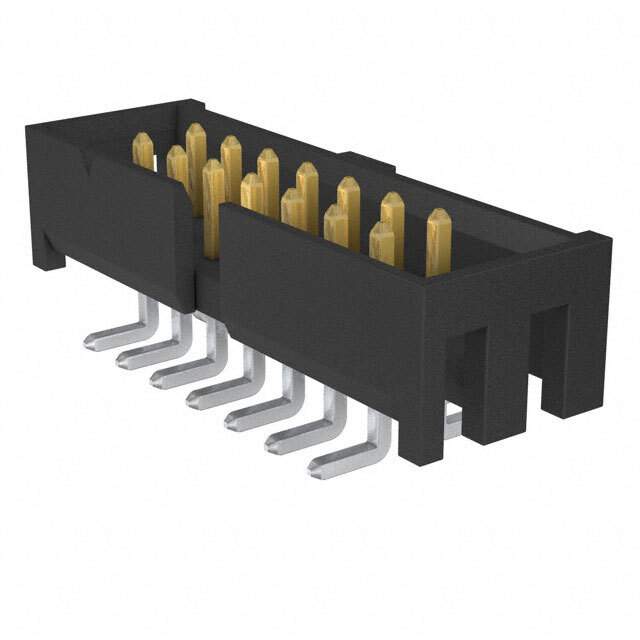

Same model may have multiple batches, images only for reference.

STMM-107-02-S-D-SM

Name: STMM-107-02-S-D-SM
Brand: Samtec Inc.
SKU: 1293201
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	STMM-107-02-S-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	STMM-107-02-S-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, STMM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.190" (4.83mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	STMM-107
Other Names	SAM11972,STMM-107-02-S-D-SM
Standard Package	28
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293201-STMM-107-02-S-D-SM
Ultra Librarian 3D Model	Ultra Librarian STMM-107-02-S-D-SM CAD Model

Alternative Products

Description

The Samtec Inc. Flex Stack, STMM series is a rectangular connector that has a header connector type with a male pin contact type.

Connector Type: Header
Contact Type: Male Pin
Pitch-Mating: 0.079" (2.00mm)
Contact Finish-Mating: Gold, 30.0µin (0.76µm)
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting Type: SMD (SMT)
Row Spacing-Mating: 0.079" (2.00mm)
Temperature Range: -55°C ~ 125°C
Current Rating: 3A
Positions: 14
Positions Loaded: All
Application: Board to cable/wire
Package: Tube
Standard Package: 28
