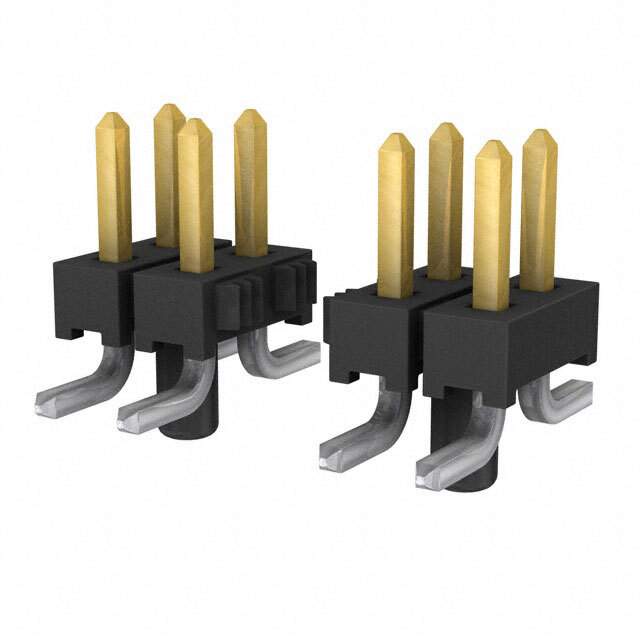

Same model may have multiple batches, images only for reference.

TMM-120-01-S-D-SM-A

Name: TMM-120-01-S-D-SM-A
Brand: Samtec Inc.
SKU: 1333051
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-120-01-S-D-SM-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP / Connector Header Surface Mount 40 position 0.079" (2.00mm)
Datasheet	TMM-120-01-S-D-SM-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-120
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	14
Win Source Part Number	1333051-TMM-120-01-S-D-SM-A
Ultra Librarian 3D Model	Ultra Librarian TMM-120-01-S-D-SM-A CAD Model

Alternative Products

Description

The TMM-120-01-S-D-SM-A from Samtec Inc. is a rectangular connector that is widely used in various electronic devices.

Positions: 40
Color: Black
Feature: Board Guide
Connector Type: Header
Rows: Two
Contact Type: Male Pin
Positions Loaded: All positions
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Mounting: Surface Mount
Pitch: 0.079" (2.00mm)
